Hinges

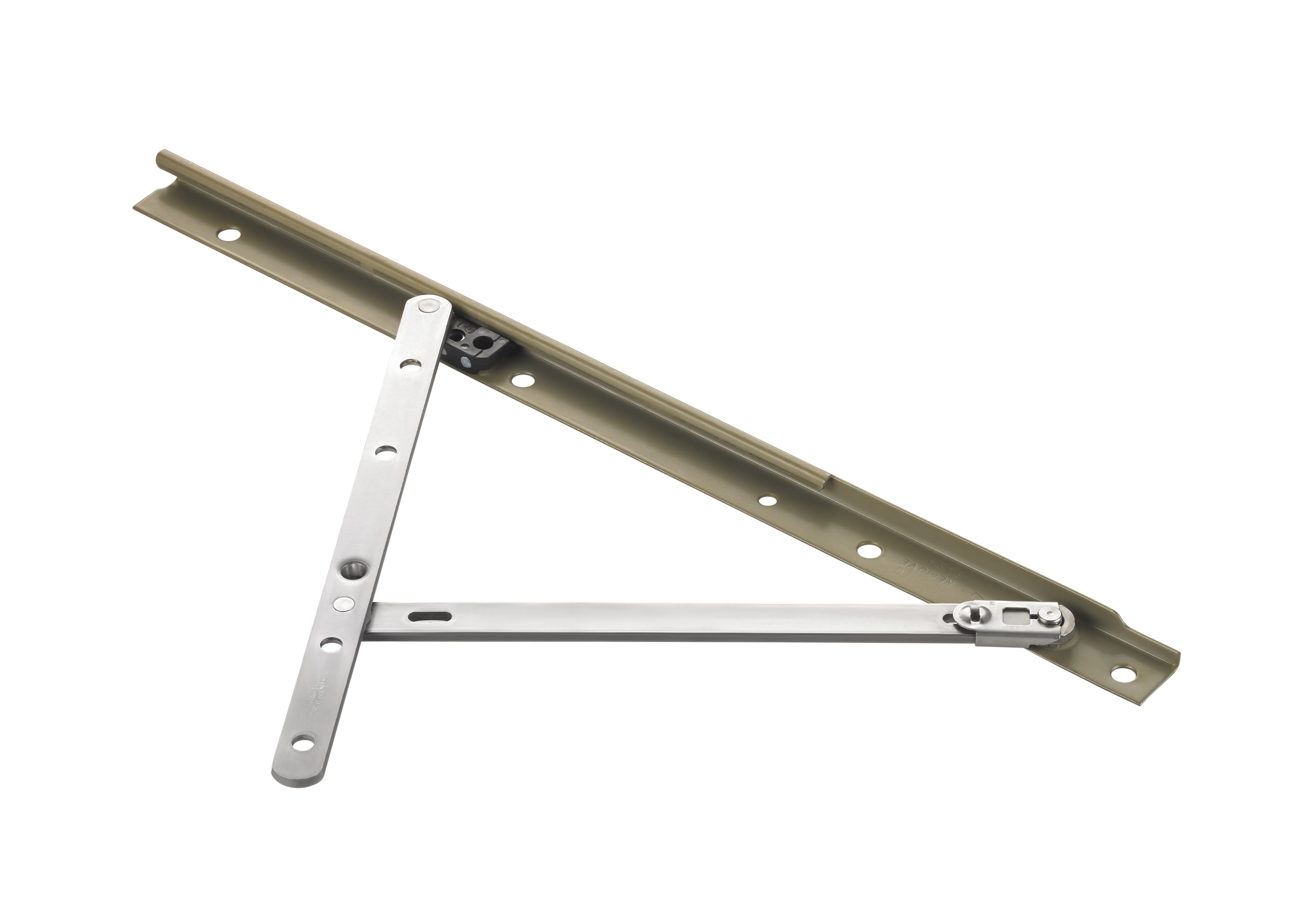

Maxim® HP

The Maxim HP (high performance) Hinge manages increased load capacities while reducing operational friction on casement windows. Sash weights up to 200 pounds are now possible when combined with select Encore® operators.

Not only designed to carry heavier loads but also to reduce complexity when assembling any  window size. The hinge fits into the same 7/16” profile cavity as our standard Maxim hinge and features a matching track mount hole pattern to our standard 10” hinge eliminating product re-design. The hinge also sports the Easy Load feature that will reduce effort when installing larger sash sizes.

product highlights

  • Sash weight capacity up to 200 lbs (when using select Encore operators)
  • Standardization of mounting with 10" hinge tracks
  • "Easy Load" feature reduces effort when installing heavy sash
  • SST Clip Stud reduces wear and helps prevent shipping damage
  • Track coating and slide shoe provide reduced operating forces
  • Enhanced safety features for large window sizes


Specifications

Part # Description Material Type Type
2025406 HGE, CSM UL HP TRK NF WSH Stainless Steel Wash
2025407 HGE, CSM LL HP TRK NF WSH Stainless Steel Wash
2025443 HGE CSM LL HP ARM 13 WSH SS Stainless Steel Wash
2025455 HGE CSM UL HP ARM 13 WSH SS Stainless Steel Wash
2025456 HGE CSM LL HP ARM 13 EGR SS Stainless Steel Egress
2025457 HGE CSM UL HP ARM 13 EGR SS Stainless Steel Egress
Part # Description Material Type Type
2116017 LIFTER, SASH HINGE CSMT PLASTIC W or E
2117427 STOP, HINGE ALUMINUM W or E
