Skylights
Sentry 3 HS

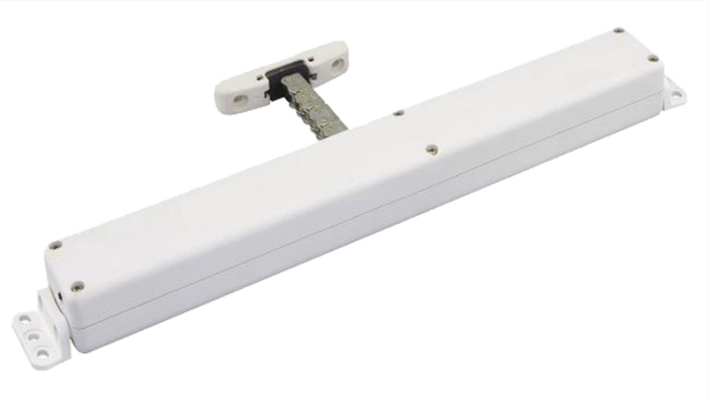

The Sentry 3 HS is the latest generation power window system designed for heavy skylights. When dual motors are synchronized, it can operate skylights weighing up to 180 lbs. This new motor is 2 inches shorter than previous HS or standard Marvel motor systems, allowing it to fit into narrower skylight applications.
With a Wi-Fi–enabled controller, the Sentry 3 HS connects to any smart device through a dedicated app, allowing convenient operation from virtually anywhere. This makes the system highly user-friendly and easy to integrate into modern smart environments.
Product Highlights
• Recommended for: aluminum, composite, vinyl, and wood
• Power conversion built right into the skylight mounted control package - no more transformers to complicate and add expense to the installation
• Power Protected Memory eliminates the need to “reset” or retrain the control system after a power outage.
• Easily adapts for new construction or retrofit applications.
• With a reduced length, the new motor fits into much narrower skylights than the existing HS or standard Marvel systems, Installation now needs approximately 13 inches of width.

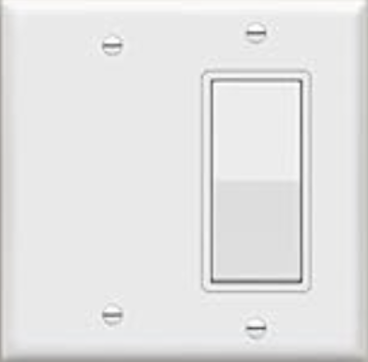

• The controller kit (sold separately) includes the controller and the power supply which converts 110vac to 24vdc, and a Decora style wall switch.

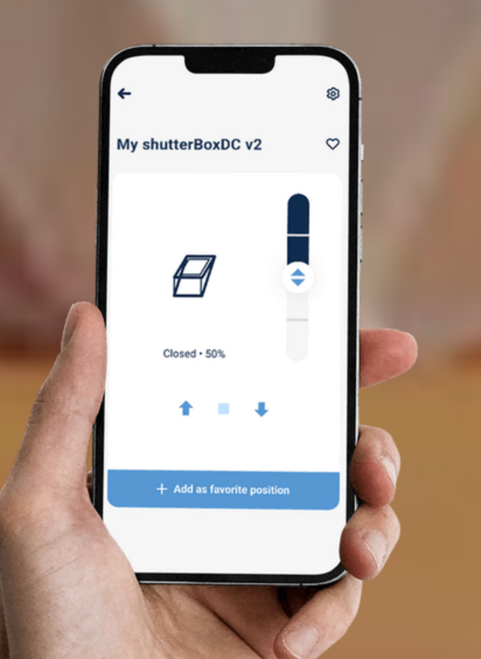

• The new controller is also Wi-Fi enabled and utilizes an available phone/device app for remote command and control eliminating the need for a separate remote control.
• Sentry 3 now allows use of up to two synchronized motors on a single skylight lid. Total maximum lid weight = 180lb
• For industrial or commercial applications, the standard 110VAC version of Marvel is still available
• Optional rain sensor sold separately (Part # 2031785 - for Sentry 3 only). The new rain sensor is Wi-Fi connected. With the use of the downloadable app, one rain sensor can be programmed to control multiple Sentry 3 motors requiring only one rain sensor per location.
Specifications (View full specifications in Excel or PDF )
| Part # | Description | Series | Model | Mount Type |
|---|---|---|---|---|
| 2032103 | MODULE, CONTROL SENTRY 3 WLS | SENTRY 3 | SENTRY 3 HS | Sill |
| 2032205 | DC MARVEL MOTOR KIT | SENTRY 3 | SENTRY 3 HS | Sill |
