Cam Locks 17 Series Trimline
The Trimline series sash locks offer various bases with optional alignment nibs and hole locations to fit a variety of window applications. An optional keyed lock version is available for custodial locking situations.
Product Highlights
- Recommended for: aluminum, composite, vinyl, and wood
- Provides easy operation and positive locked feel (detent)
- The cam design will provide .125" of pull-in and .156" lifting ability to aid in sealing the meeting rails
- Available with and without alignment lugs
- 17.48 and 17.50 series Trimline locks offer keyed alike locking for custodial applications
Specifications
| Part # | Handing | Color Code | Color Name | Hole Backset |
|---|---|---|---|---|
| 17.48.FB.100 | Left Hand | FB | Faux Bronze | 0.640" |
| 2011057 | Left Hand | 24 | Beige | 0.437" |
| 2011058 | Left Hand | 32 | 32 White | 0.719" |
| 2011059 | Left Hand | 78 | Bright White | 0.719" |
| 2011060 | Left Hand | FB | Faux Bronze | 0.437" |
| 2011061 | Left Hand | 32 | 32 White | 0.437" |
| 2011062 | Left Hand | 78 | Bright White | 0.437" |
| 2011063 | Left Hand | 78 | Bright White | 0.132" |
| 2011283 | Left Hand | 02 | Black | 0.687" |
| 2011285 | Left Hand | 24 | Beige | 0.39" |
| 2011286 | Left Hand | 32 | 32 White | 0.687" |
| 2011288 | Left Hand | 78 | Bright White | 0.437" |
| 2011289 | Left Hand | FB | Faux Bronze | .687" |
| 2011290 | Left Hand | 02 | Black | 0.687" |
| 2011291 | Left Hand | 24 | Beige | 0.687" |
| 2011292 | Left Hand | 32 | 32 White | 0.437" |
| 2011293 | Left Hand | 41 | Sahara Beige | 0.375" |
| 2011294 | Left Hand | 78 | Bright White | .687" |
| 2011295 | Left Hand | BK | Matte Black | 0.375" |
| 2011296 | Left Hand | FB | Faux Bronze | 0.390" |
| 2011298 | Left Hand | 02 | Black | 0.375" |
| 2011299 | Left Hand | 32 | 32 White | 0.375" |
| 2011300 | Left Hand | 02 | Black | 0.132" |
| 2011302 | Left Hand | 10 | Satin Nickel | 0.132" |
| 2011304 | Left Hand | 24 | Beige | 0.132" |
| 2011305 | Left Hand | 32 | 32 White | 0.132" |
| 2011306 | Left Hand | 78 | Bright White | 0.132" |
| 2011307 | Left Hand | BK | Matte Black | 0.132" |
| 2011308 | Left Hand | FB | Faux Bronze | 0.132" |
| 2114370 | Left Hand | 03 | Bronze | 0.580" |
| 2114371 | Left Hand | 24 | Beige | N/A |
| 2114372 | Left Hand | 32 | 32 White | 0.580" |
| 2114373 | Left Hand | BK | Matte Black | 0.850" |
| 2114374 | Left Hand | CT | Almond | 0.640" |
| 2114375 | Left Hand | .01 | Satin Silver (K38) | 0.813" |
| 2114376 | Left Hand | 02 | Black | 0.640" |
| 2114377 | Left Hand | 03 | Bronze | 0.640" |
| 2114380 | Left Hand | 32 | 32 White | 0.640" |
| 2114381 | Left Hand | 42 | Snow White | 0.437" |
| 2114383 | Left Hand | 78 | Bright White | 0.850" |

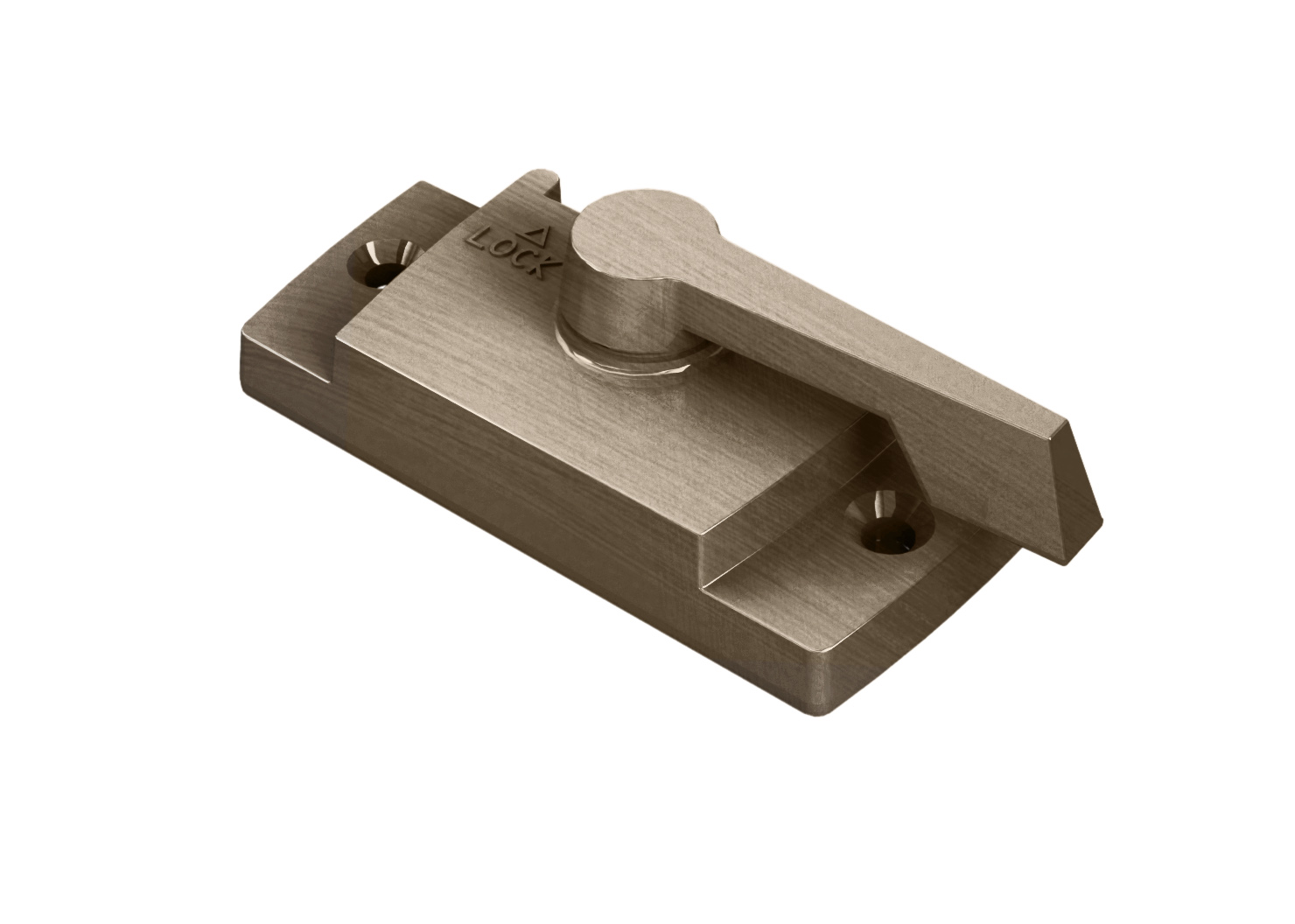

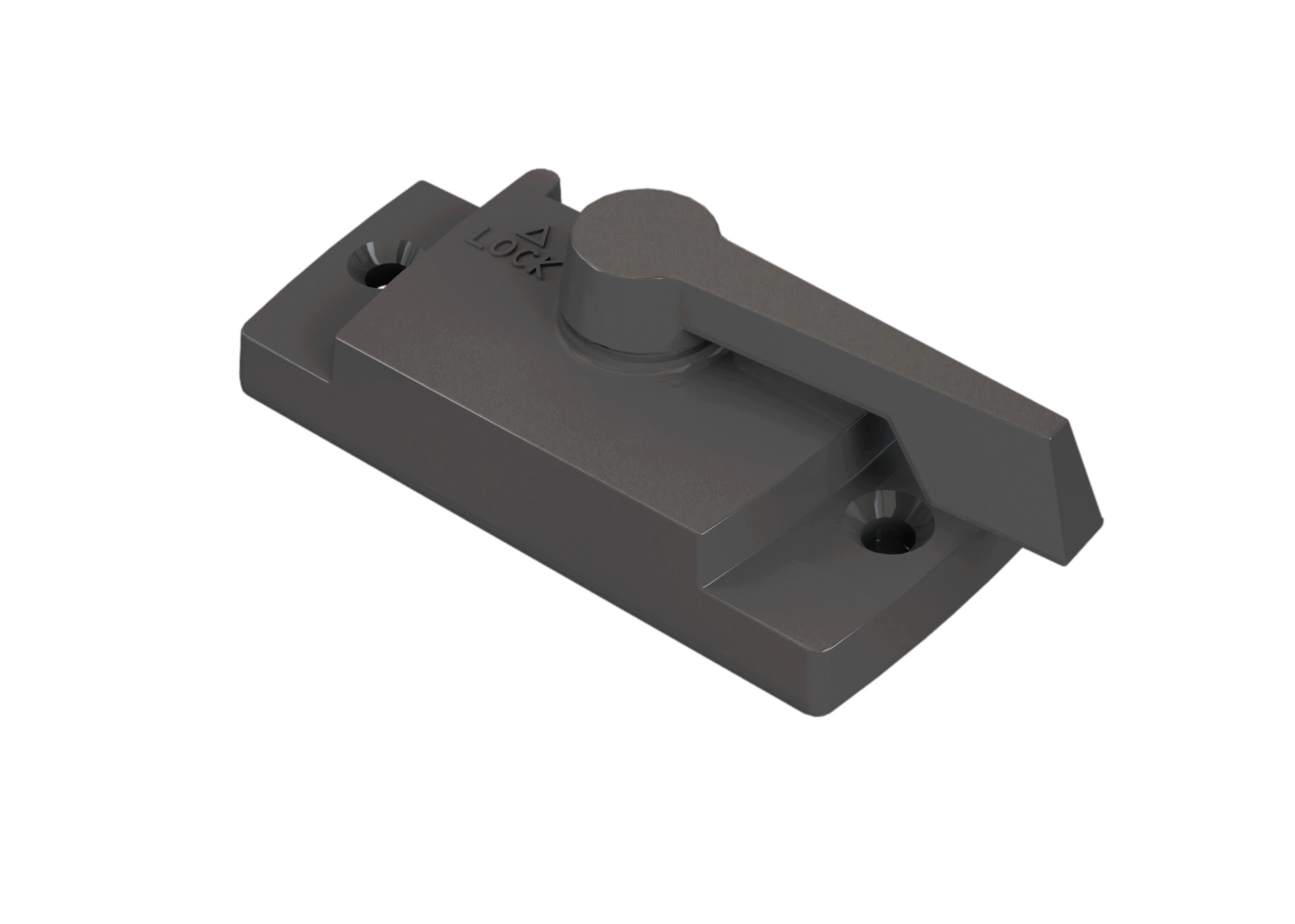

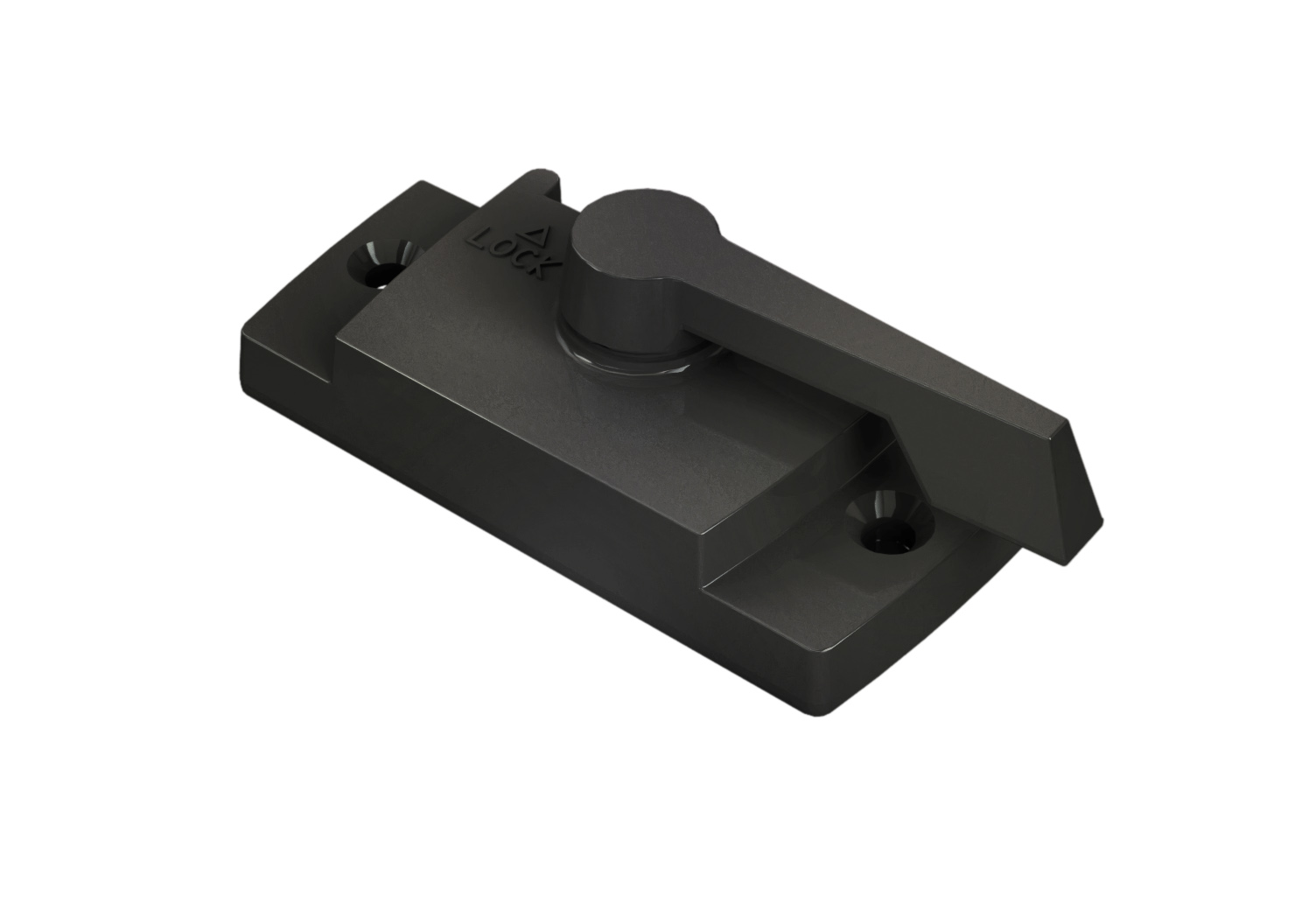

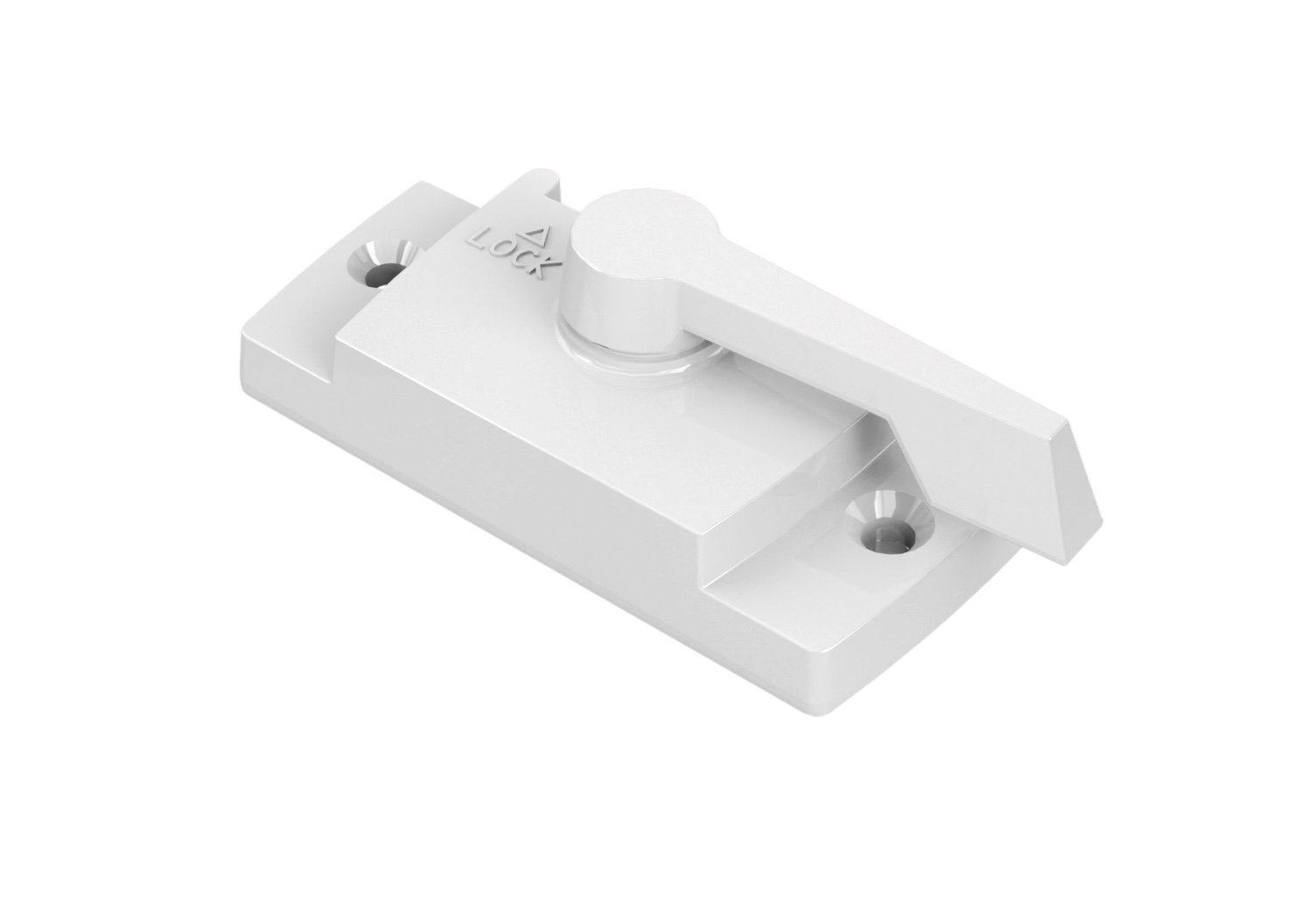

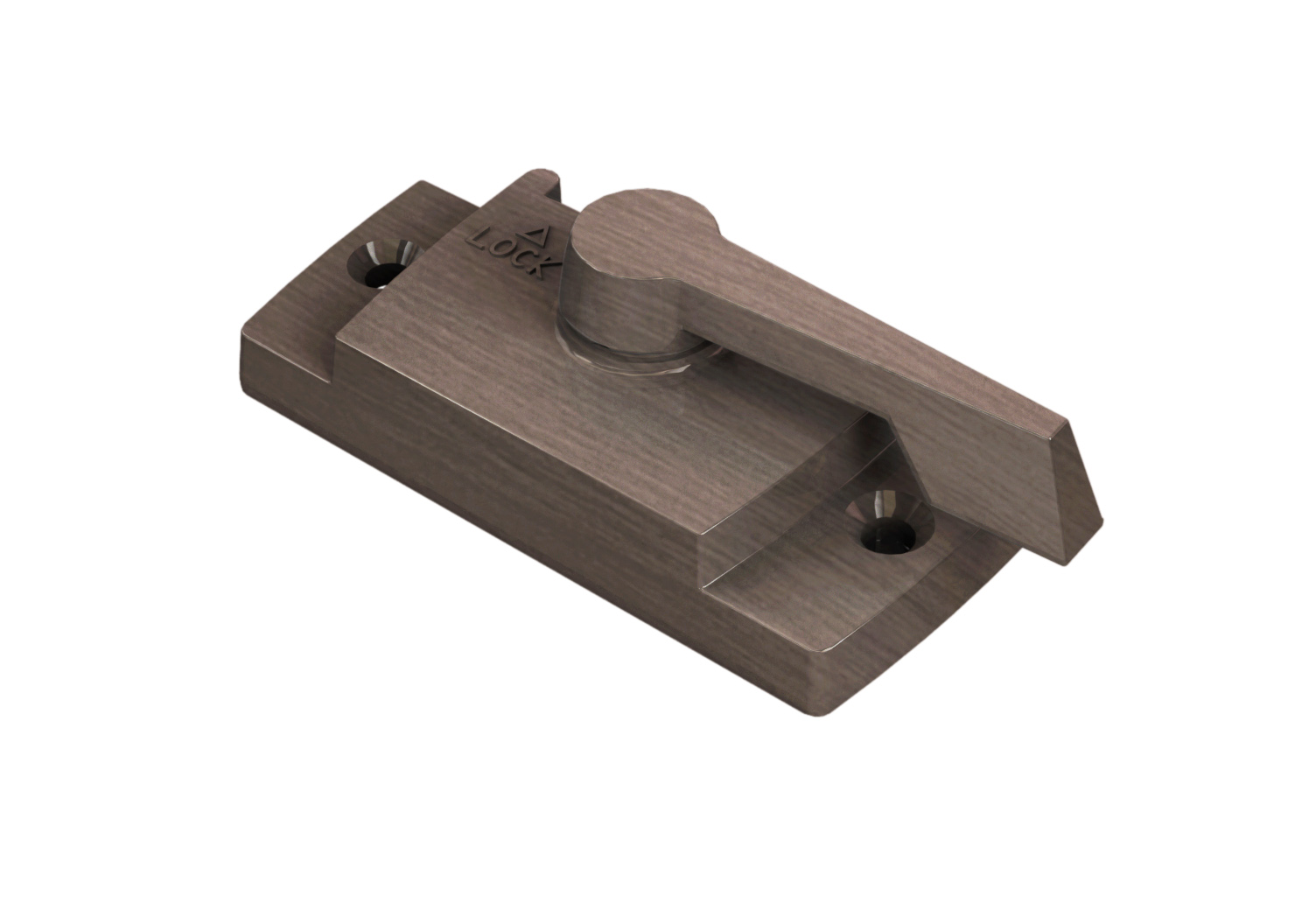

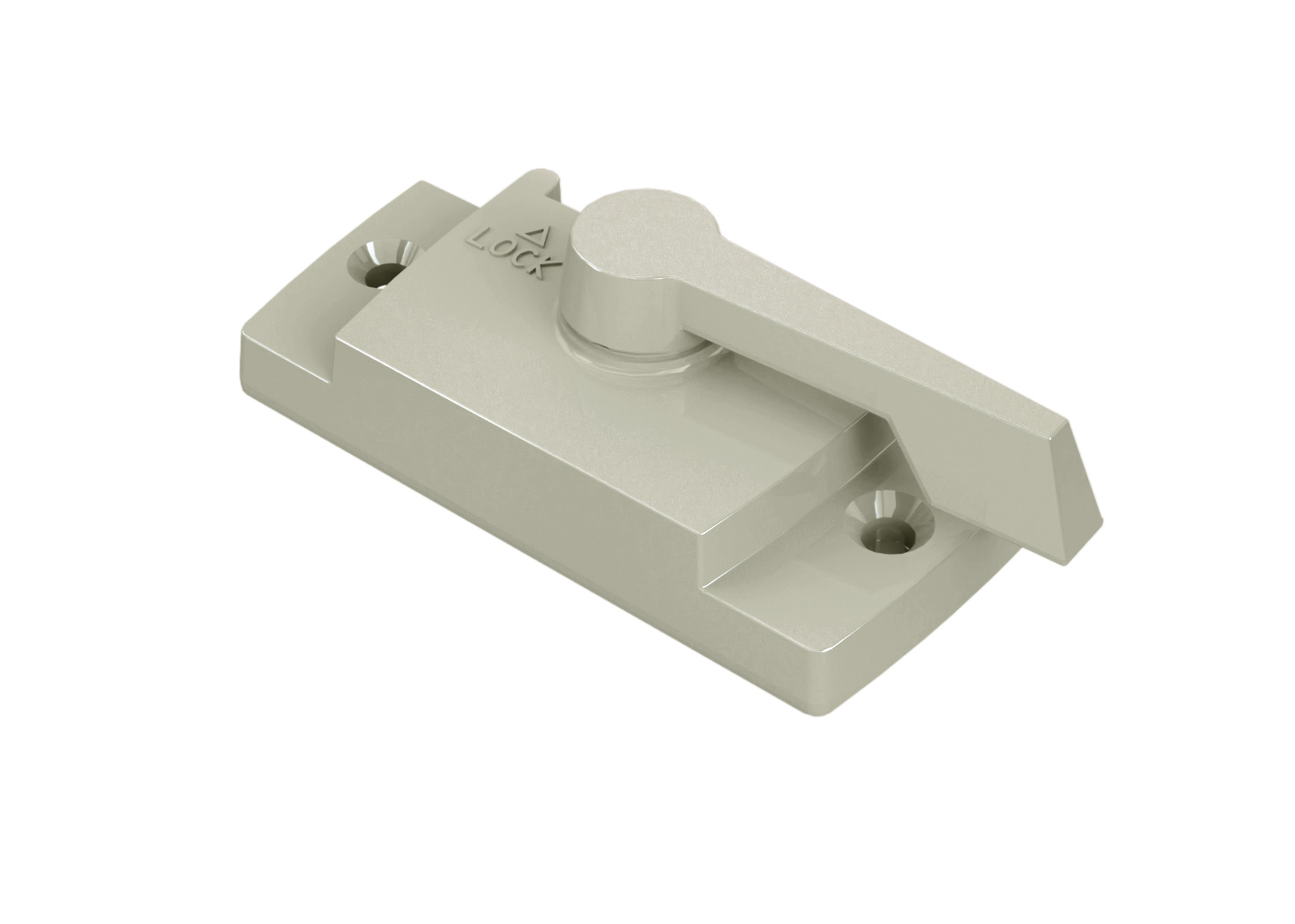

Click an image below to view a larger version
