Balances

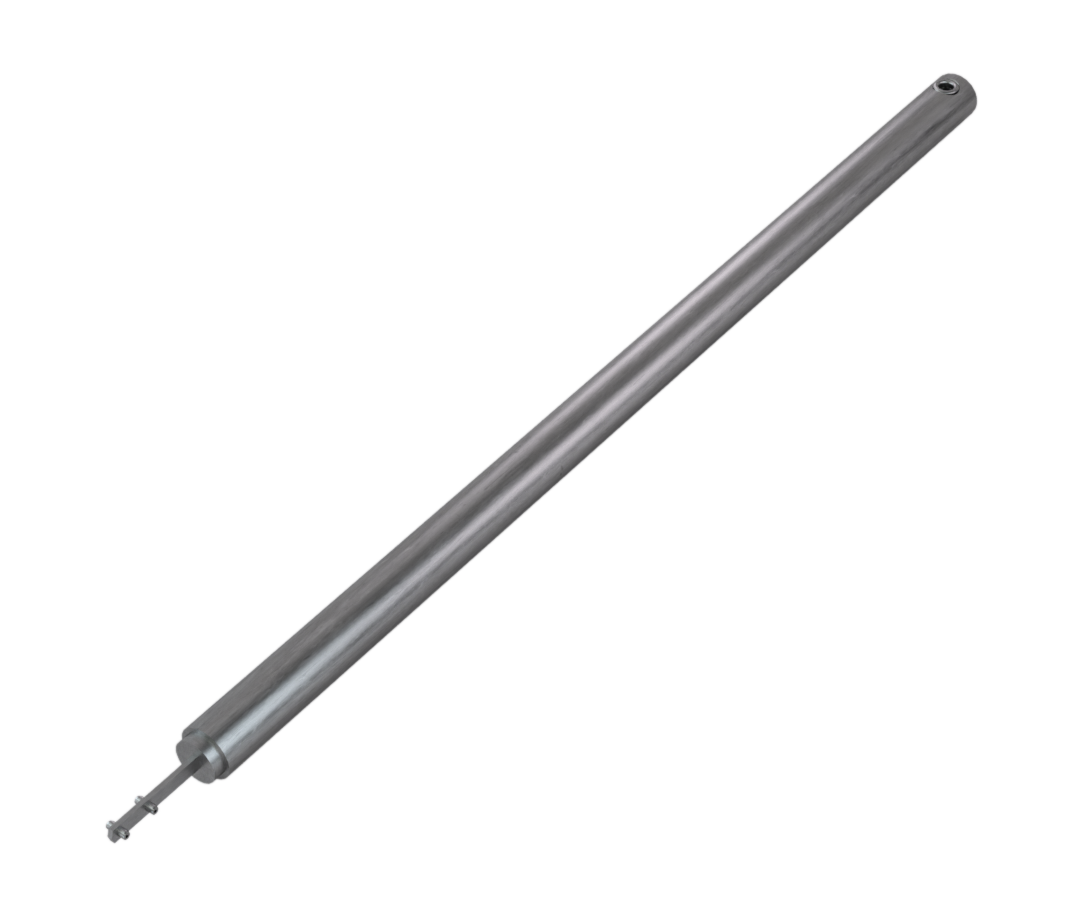

Hybrid Balance
One Balance. More Weight Capacity. Smoother Operation.
The Hybrid Balance is AAMA Class 6 certified and designed for today’s heavier window sashes. It delivers low, consistent operating forces for smooth, controlled operation while helping minimize sash hop and drop.
A single balance size accommodates a broader range of sash weights, giving manufacturers greater design flexibility while simplifying production and reducing inventory requirements.
More capacity. Fewer SKUs. Smoother operation.
product Highlights
- ·Designed for multiple window materials: Aluminum, composite, vinyl, and wood
- ·Ideal for premium residential and light commercial windows
- ·AAMA Class 6 rated for demanding operating force requirements
- ·Configurable for tilt or non-tilt applications
- ·Excellent travel and consistent performance
- ·Delivered pre-tensioned for simplified installation and setup
- ·.660” diameter weight capacity up to 100 lbs.
- ·.759” diameter weight capacity up to 130 lbs.
Specifications
| Attribute | Value |
|---|---|
| Lite Lift - Weight Capacity | 10 - 99 lbs |
| Lite Lift - Length Range | 6" - 72" |
| Super Lift - Weight Capacity | 90 - 129 lbs |
| Super Lift - Length Range | 6" - 72" |
