52041

Reach: 0.250"

52041

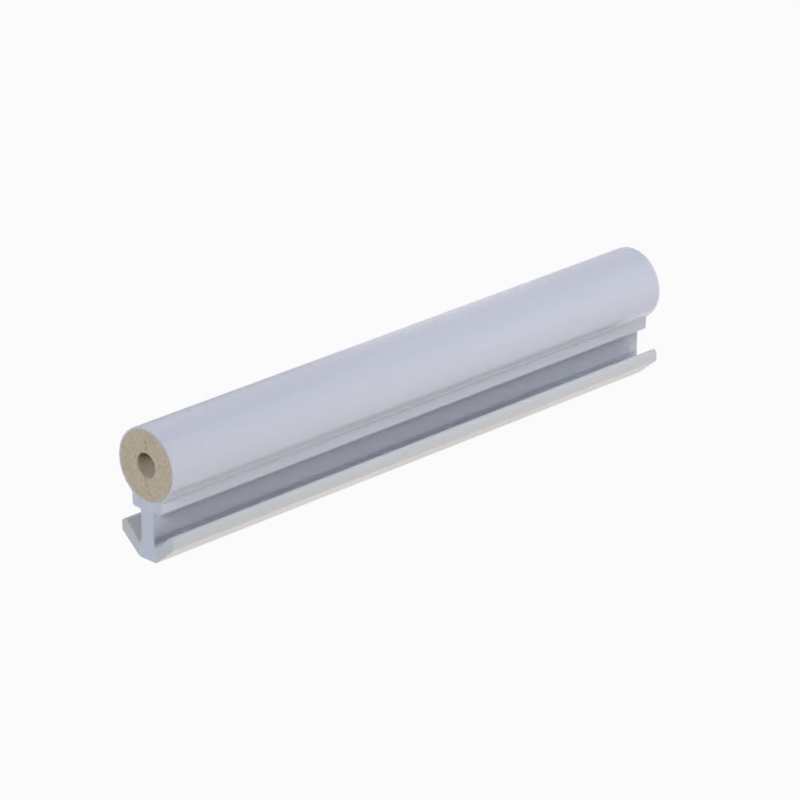

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

product highlights

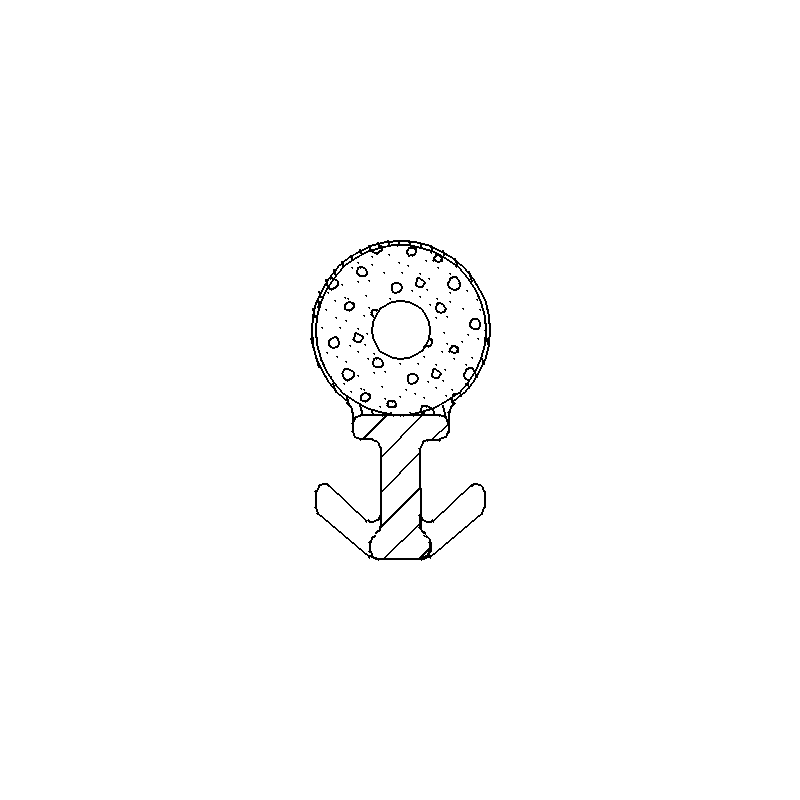

  • Reach: .250" (6.35mm)
  • Bulb Diameter: .225" (5.72mm)
  • Pocket Depth: .180" (4.57mm)
  • Pocket Width: .212" (5.38mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
52041110191500 3000' Reeled 0.100" 0.250" 0.212"
52041110591500 3000' Reeled 0.100" 0.250" 0.212"
52041114291500 3000' Reeled 0.100" 0.250" 0.212"

Tans

Suede
Suede
Tan
Tan

Whites

Bright White
Bright White
