Reach: 0.300"
32684

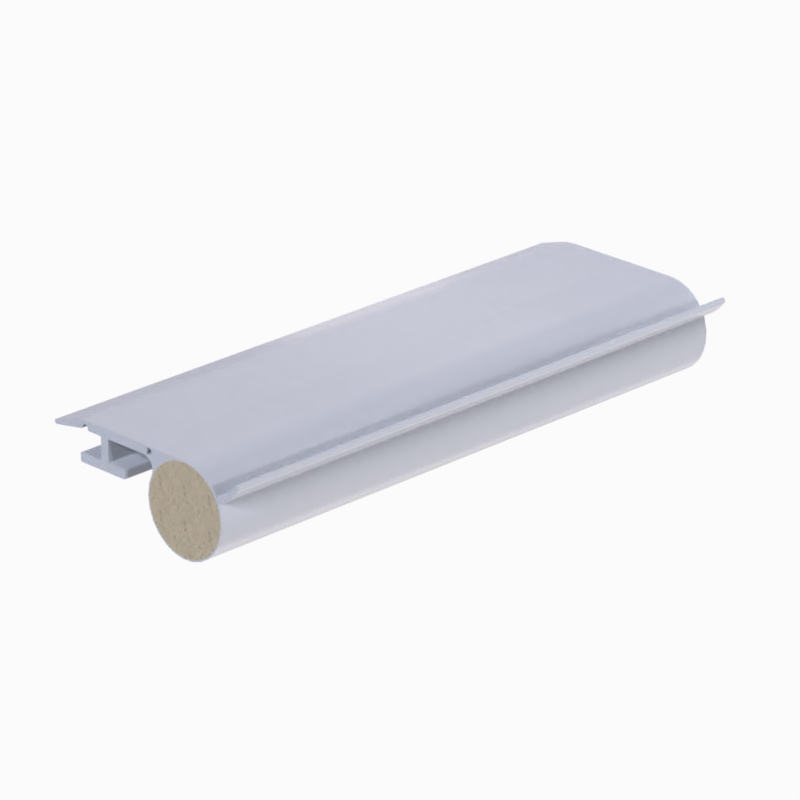

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite's products are CFC and phthalate free.
product highlights
-

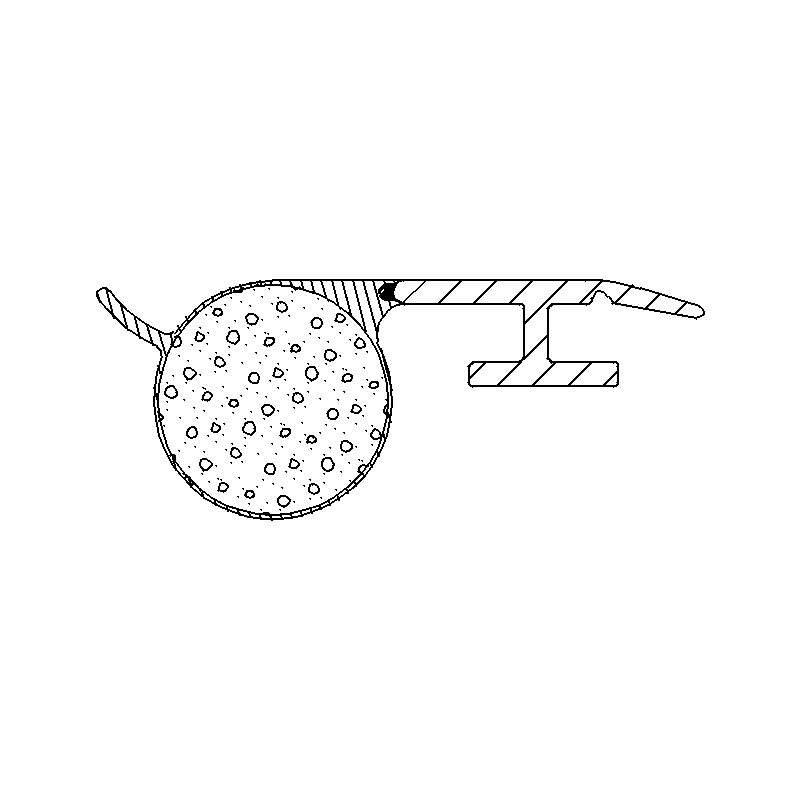

Off-set carrier design makes this shape a great fit for bottom and meeting rail applications
-
Overall Height: .370" (9.4mm)
-
Bulb Diameter: .300" (7.62mm)
-
Base Width: .187" (4.75mm)
Specifications
| Part # | Box Quantity | Cut Length | Recommended Opening | Reach | Backing / Kerf Width |
|---|---|---|---|---|---|
| 32684111691000 | 2,000' | Reeled | 0.210" | 0.300" | 0.187" |
| 32684111791000 | 2,000' | Reeled | 0.210" | 0.300" | 0.187" |
| 32684111891000 | 2,000' | Reeled | 0.210" | 0.300" | 0.187" |
| 32684112091000 | 2,000' | Reeled | 0.210" | 0.300" | 0.187" |
| 32684112191000 | 2,000' | Reeled | 0.210" | 0.300" | 0.187" |
| 32684112591000 | 2,000' | Reeled | 0.210" | 0.300" | 0.187" |
| 32684114291000 | 2,000' | Reeled | 0.210" | 0.300" | 0.187" |
Blacks
Browns
Tans
Whites
