Reach: 0.500"
12259

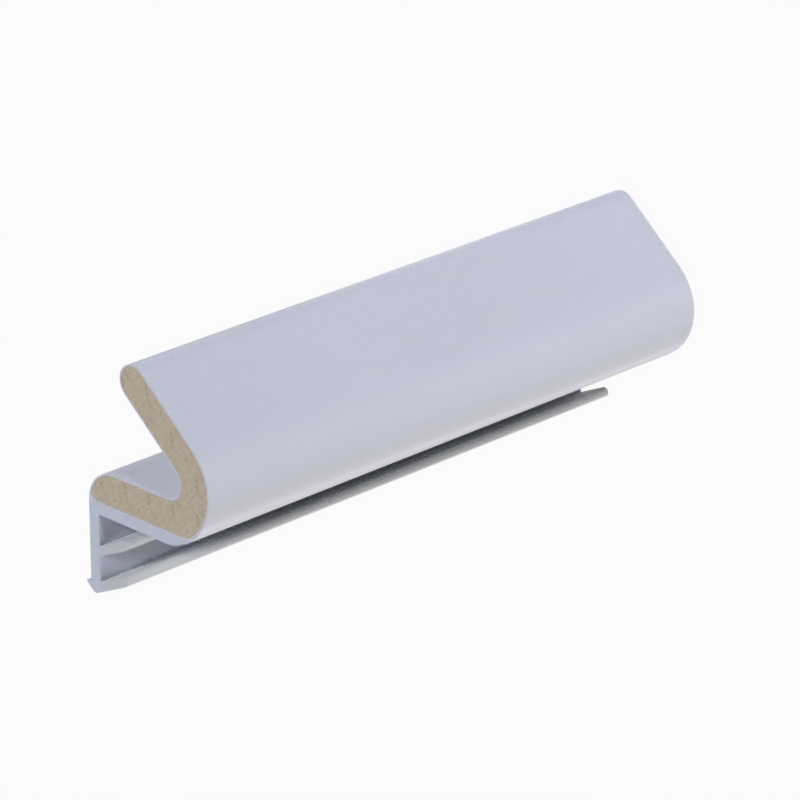

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.
product highlights
- Overall Reach: .500" (12.70mm)
- Bulb Width: .500" (12.70mm)
- Kerf Depth: .250" (6.35mm)
- Kerf Width: .173" (4.39mm)
Specifications
| Part # | Box Quantity | Cut Length | Recommended Opening | Reach | Backing / Kerf Width |
|---|---|---|---|---|---|
| 12259111609600 | 125 | 96" | 0.120" | 0.500" | 0.155" |
| 12259112009600 | 125 | 96" | 0.120" | 0.500" | 0.155" |
| 12259112109600 | 125 | 96" | 0.120" | 0.500" | 0.155" |
Blacks
Browns
Whites
