Reach: 0.875"

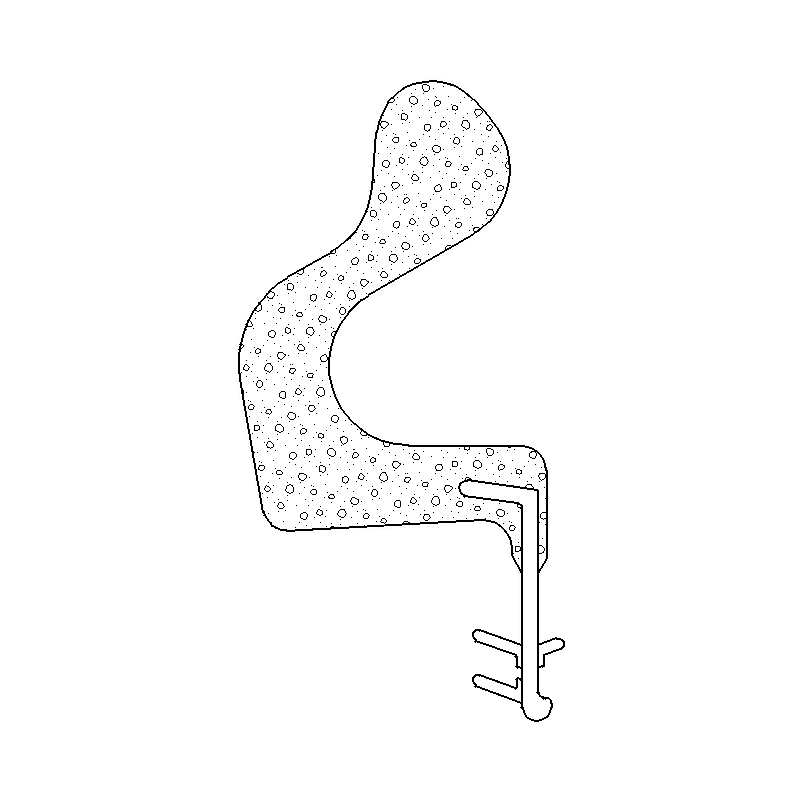

Q-LON® .875 (UC8)
Composed of open cell foam and a polyethylene liner which provides maximum long-term performance with low compression force, and resistance against compression set. Retains its original shape year after year to maintain an excellent weatherseal. A dual durometer insert allows for easy insertion and maximum retention. It is removable without damaging the jamb or seal.
- Recommended for: aluminum, composite, vinyl, and wood
- Kerf Width 0.125"(3.2mm)
- Kerf Depth 0.438"(11.1mm)
- Rabbet Depth 2-1/8"(54mm)
- Reach 0.875"(22.23mm)
- Excellent memory – returns to original shape after long compression
- Stability – low / no stretch gained by rigid insert or glass fiber internal cord
- Easily compressed – low compression forces, unaffected by temperature variance
- Acoustics – outstanding acoustic performance
- Thermal conductivity – unrivaled thermal performance
- Paint and stain-proof – properties unaffected by standard paints and stains
- Stabilized – unaffected by rot, fungi, UV-light, or ozone
- Temperatures – wide operating range under extremely cold and warm weather conditions
Specifications
| Part # | Box Quantity | Recommended Opening | Backing / Kerf Width |
|---|---|---|---|
| UC832-00000 | 500 | 0.613" | 0.175" |
| UC832-03800 | 250 | 0.613" | 0.175" |
| UC832-08200 | 125 | 0.613" | 0.175" |
| UC832-09700 | 125 | 0.613" | 0.175" |
| UC832-12000 | 125 | 0.613" | 0.175" |
| UC832-14400 | 125 | 0.613" | 0.175" |
| UC833-00000 | 500 | 0.613" | 0.175" |
| UC833-03800 | 250 | 0.613" | 0.175" |
| UC833-08200 | 125 | 0.613" | 0.175" |
| UC833-09700 | 125 | 0.613" | 0.175" |
| UC833-12000 | 125 | 0.613" | 0.175" |
| UC833-14400 | 125 | 0.613" | 0.175" |
| UC834-00000 | 500 | 0.613" | 0.175" |
| UC834-03800 | 250 | 0.613" | 0.175" |
| UC834-08200 | 125 | 0.613" | 0.175" |
| UC834-09700 | 125 | 0.613" | 0.175" |
| UC834-12000 | 125 | 0.613" | 0.175" |
| UC834-14400 | 125 | 0.613" | 0.175" |
| UC836-00000 | 500 | 0.613" | 0.175" |
| UC836-03800 | 250 | 0.613" | 0.175" |
| UC836-08200 | 125 | 0.613" | 0.175" |
| UC836-09700 | 125 | 0.613" | 0.175" |
| UC836-12000 | 125 | 0.613" | 0.175" |
| UC836-14400 | 125 | 0.613" | 0.175" |
