Mortise Locks
Multi Point Nexus® Three Point
The Nexus Lock System is a two-point and multi-point lockset options for sliding patio doors. Combining...
Handle Sets

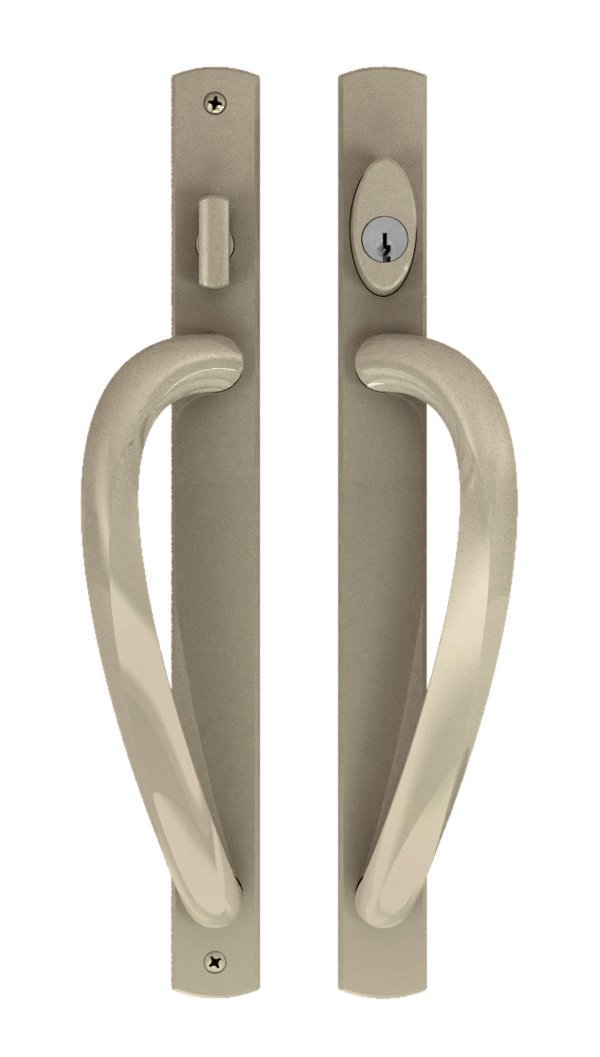

Signature® 40.94
The 40.94 Signature series handle sets offers a contour shape which is both elegant and easy to grasp. Compatible with single or multi-point mortise locks, this series of handle sets have been engineered to fit stile thicknesses ranging from 1.25” to 2.25”. Extended bosses on both the inside and outside escutcheons enhance handle stability for more secure operation.
The 40.94 Signature series handle set is designed to accent today’s larger patio doors. This non-handed design features escutcheons that are 13 inches long by 1.25 inches wide and a locking point located above the handle to provide easy access to the thumb-turn or optional key cylinder.
Handle options include:
- Keyed
- Non-keyed
- Dummy
Product Highlights
- Both OX and XO handles
- Interior escutcheon with thumb-turn mounted
- Exterior escutcheon with full-length gasket
- Handle (4) mounting screws with hex wrench
- Interior escutcheon with thumb-turn mounted
- Exterior escutcheon with full-length gasket
- The square escutcheon is common between Signature and Contemporary handle styles
- KD SCH-C style 5-pin Key cylinder with 2 keys (KA available separately)
Specifications
| Part # | Description | Action | Color Name |
|---|---|---|---|
| 2122827 | PD HDL SET, S-ACT | Semi-Active (No Key) | Matte Black |
| 2122828 | PD TRIM SET, ACTIVE | Active (Keyed) | Matte Black |
| 2122829 | PD HDL SET, 1.25" ARC DUMMY | Inactive (Dummy) | Matte Black |
| 2122838 | PD HDL SET, S-ACT | Semi-Active (No Key) | Faux Bronze |
| 2122839 | PD TRIM SET, ACTIVE | Active (Keyed) | Faux Bronze |
| 2122840 | PD HDL SET, 1.25" ARC DUMMY | Inactive (Dummy) | Faux Bronze |
| 2122851 | PD HDL SET, 1.25" ARC DUMMY | Inactive (Dummy) | Oil Rubbed Bronze - PVD |
| 40.94.02.100 | PD HDL SET, S-ACT | Semi-Active (No Key) | Black |
| 40.94.1B.100 | PD HDL SET, S-ACT | Semi-Active (No Key) | Beige |
| 40.94.1B.101 | PD TRIM SET, ACTIVE | Active (Keyed) | Beige |
| 40.94.1B.102 | PD HDL SET, 1.25" ARC DUMMY | Inactive (Dummy) | Beige |
| 40.94.1D.100 | PD HDL SET, S-ACT | Semi-Active (No Key) | White |
| 40.94.1D.101 | PD TRIM SET, ACTIVE | Active (Keyed) | White |
| 40.94.1D.102 | PD HDL SET, 1.25" ARC DUMMY | Inactive (Dummy) | White |
| 40.94.5B.100 | PD HDL SET, S-ACT | Semi-Active (No Key) | Black |
| 40.94.5B.101 | PD TRIM SET, ACTIVE | Active (Keyed) | Black |
| 40.94.5B.102 | PD HDL SET, 1.25" ARC DUMMY | Inactive (Dummy) | Black |
| 40.94.5E.100 | PD HDL SET, S-ACT | Semi-Active (No Key) | Satin Nickel - PVD |
| 40.94.5E.101 | PD TRIM SET, ACTIVE | Active (Keyed) | Satin Nickel - PVD |
| 40.94.5E.102 | PD HDL SET, 1.25" ARC DUMMY | Inactive (Dummy) | Satin Nickel - PVD |
| 40.94.JD.101 | PD TRIM SET, ACTIVE | Active (Keyed) | Oil Rubbed Bronze - PVD |
Click an image below to view a larger version
*Efforts have been made to accurately display colors but they may vary based on screen settings.
Blacks
Browns
Nickels
Oil Rubbed Bronzes
Tans
Whites
