V500 Adjustable Hinge
A Smarter Adjustable Hinge That Saves Time on Installation
The V500 Adjustable Hinge helps installers achieve precise door alignment faster using the adjustments in the bottom barrel -without opening the door. Built-in horizontal and vertical adjustment provides a consistent reveal around the door; cutting installation time, reducing rework, and minimizing costly callbacks.
Product Highlights
- Fine-tune door alignment with precise horizontal ( +/- .100") and vertical adjustment (+.250")
- Real-time feedback seen by adjusting without reopening the door
- Provides ease of assembly with lift-off design
- Easily remove panels for maintenance, replacement, and finishing
- Improved security with a non-removable pin
- Built to last, meets BHMA standards, tested to 350,000 cycles
- One tool to make door adjustments (2030178)
- Matching optional cap cover (14743.xx)
Videos
Specifications (View full specifications in Excel or PDF )
| Part # | Description | Substrate | Handing | Horizontal / Vertical |
|---|---|---|---|---|

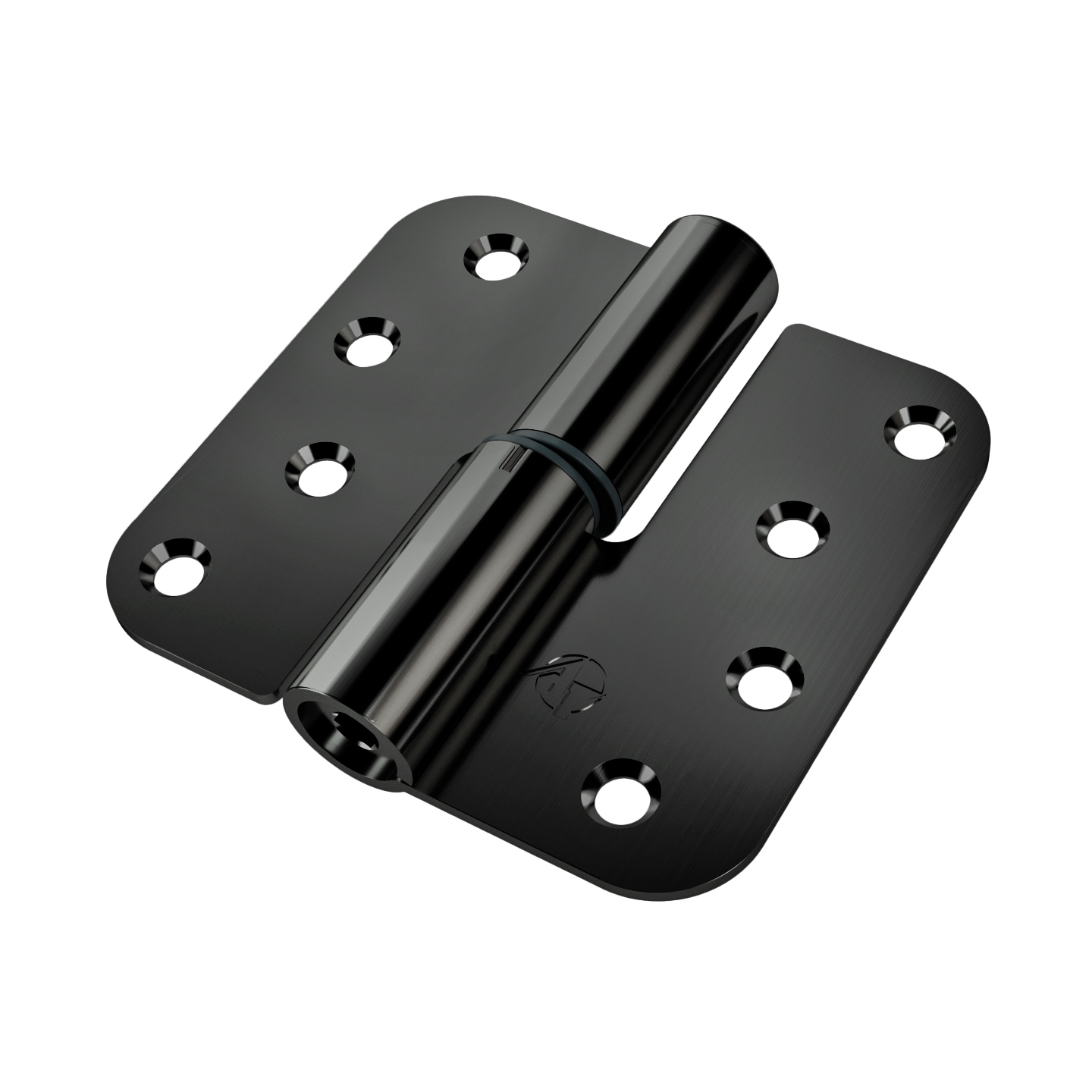

| 2030168 | V500 Adjustable Hinge RH - Black -02 | Steel | RH | Both |
| 2030169 | V500 Adjustable Hinge LH - Black -02 | Steel | LH | Both |

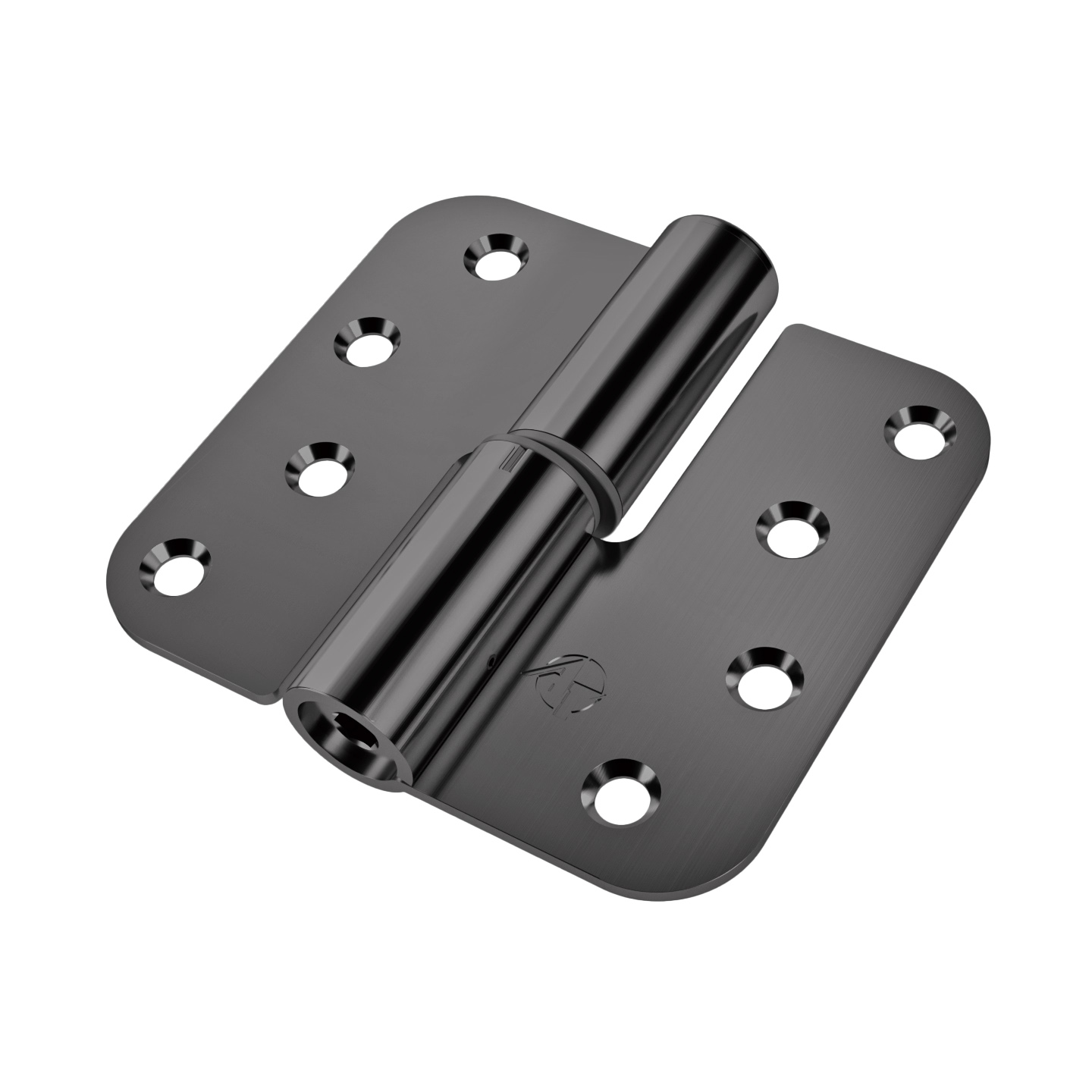

| 2030170 | V500 Adjustable Hinge RH - Faux Bronze .FB | Steel | RH | Both |
| 2030171 | V500 Adjustable Hinge LH - Faux Bronze .FB | Steel | LH | Both |

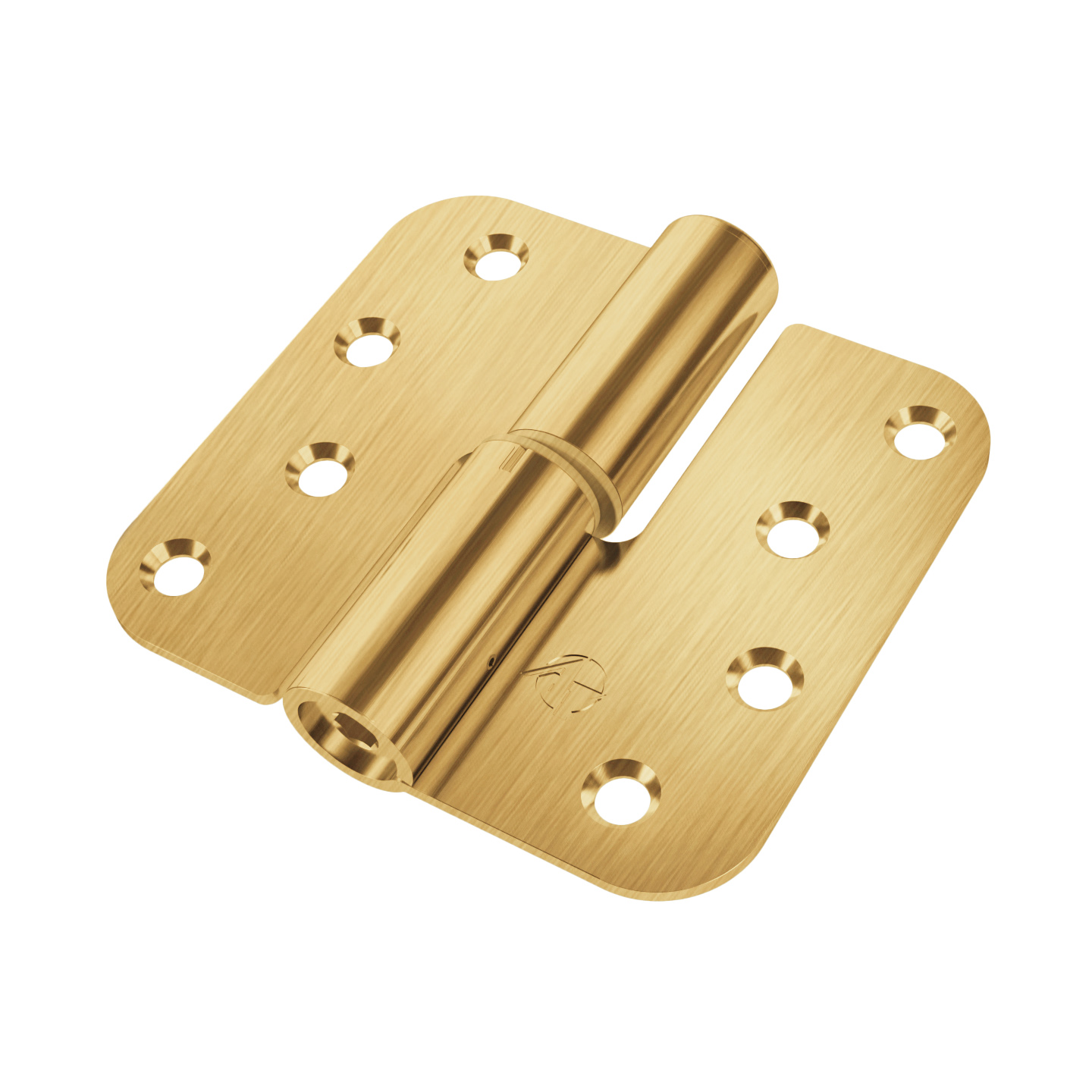

| 2030172 | V500 Adjustable Hinge RH - Ant Brass -80 | Steel | RH | Both |
| 2030173 | V500 Adjustable Hinge LH - Ant Brass -80 | Steel | LH | Both |

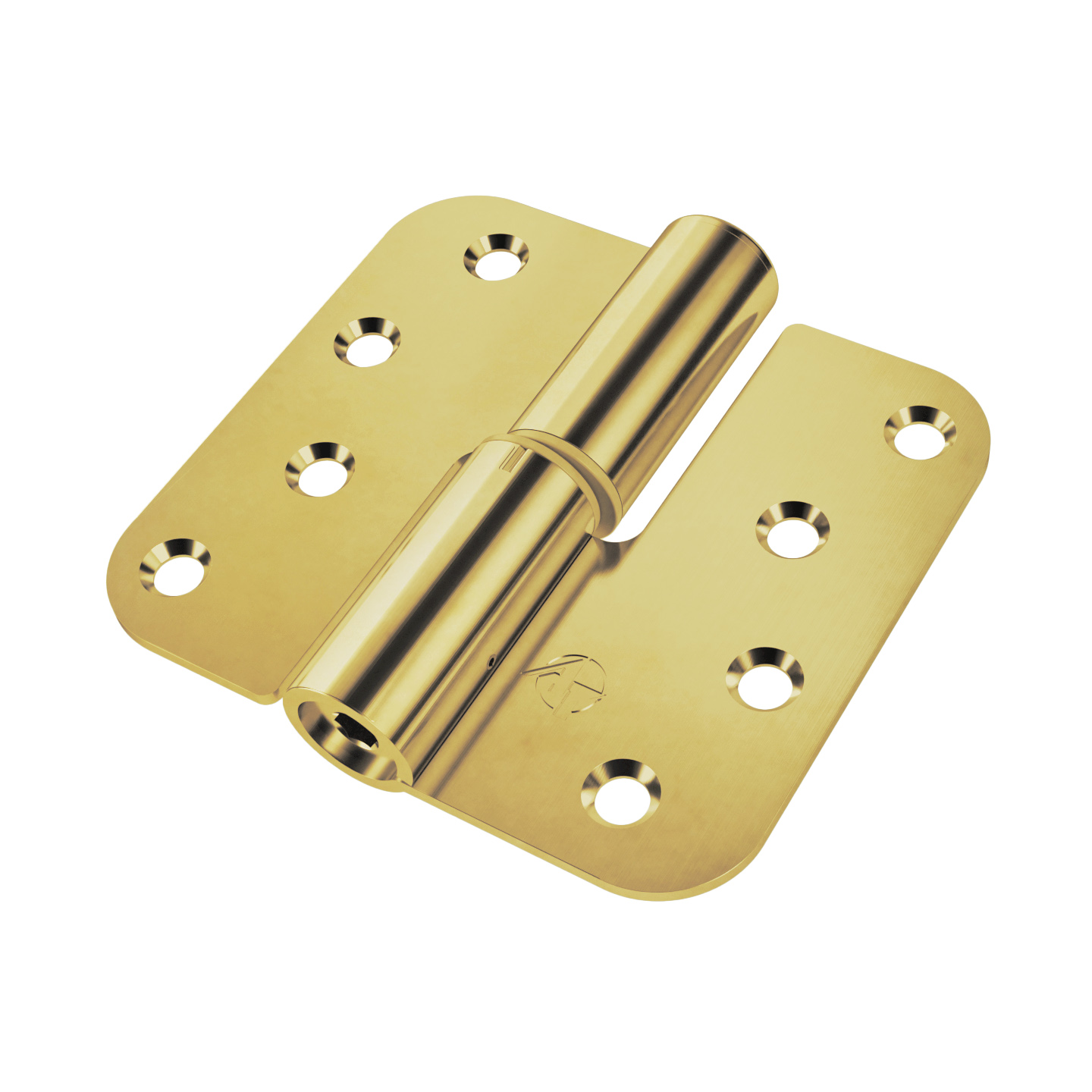

| 2030174 | V500 Adjustable Hinge RH - Brass PVD -91 | Stainless Steel | RH | Both |
| 2030175 | V500 Adjustable Hinge LH - Brass PVD -91 | Stainless Steel | LH | Both |

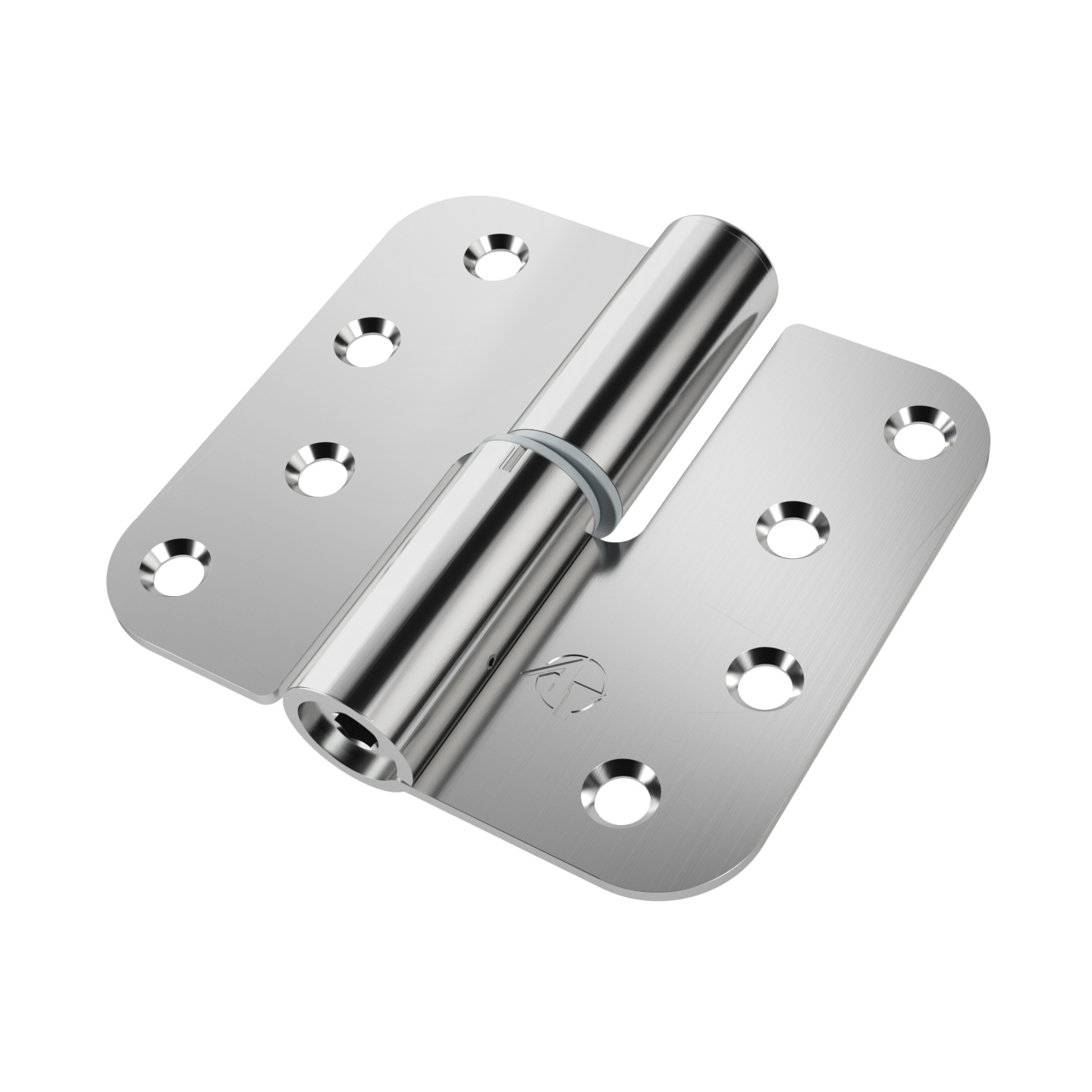

| 2030176 | V500 Adjustable Hinge RH - Brushed SS | Stainless Steel | RH | Both |
| 2030177 | V500 Adjustable Hinge LH - Brushed SS | Stainless Steel | LH | Both |

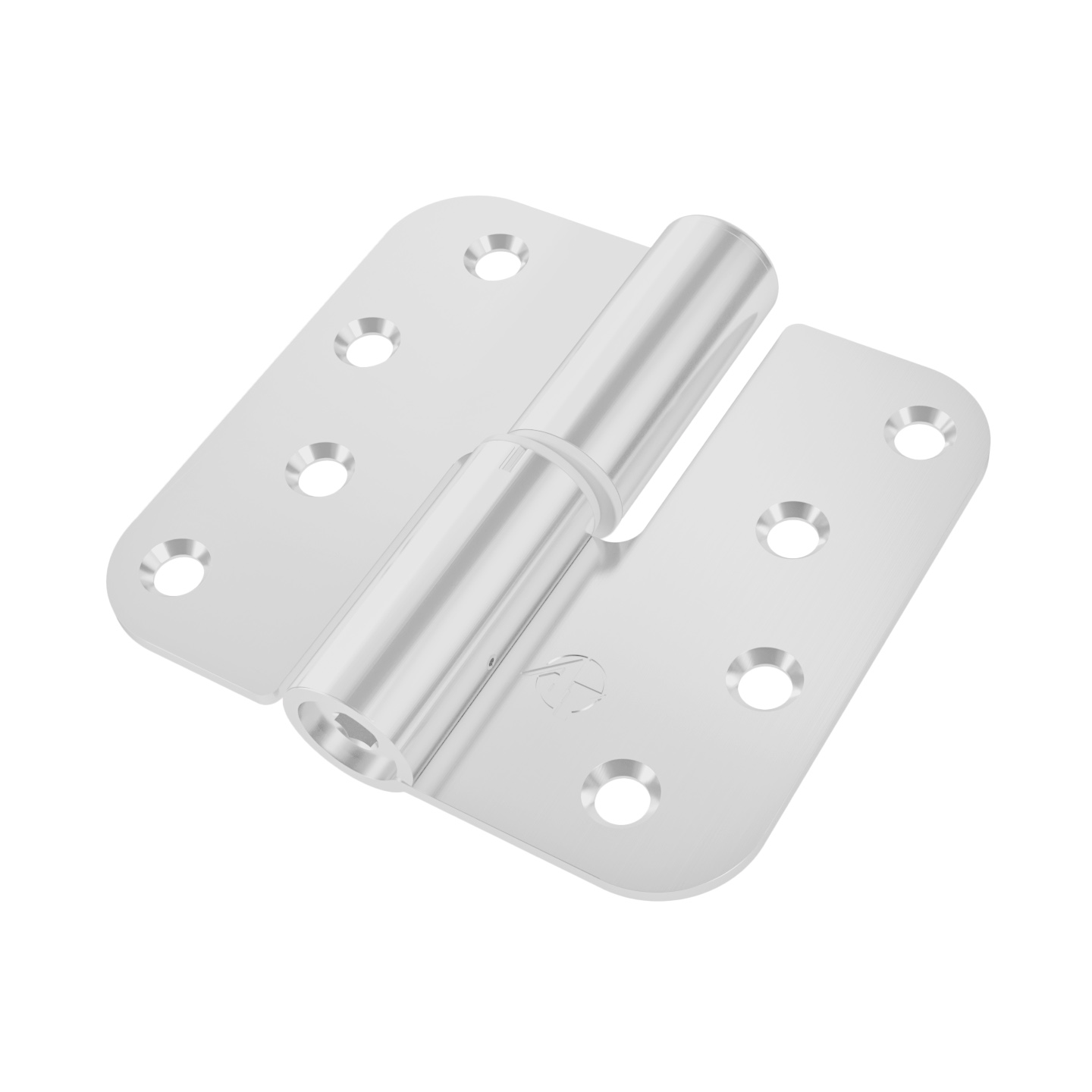

| 2031539 | V500 Adjustable Hinge LH - White -01 | Steel | LH | Both |
| 2031540 | V500 Adjustable Hinge RH - White -01 | Steel | RH | Both |
| 2031541 | V500 Adjustable Hinge LH - ORB PVD -99 | Stainless Steel | LH | Both |
| 2031542 | V500 Adjustable Hinge RH - ORB PVD -99 | Stainless Steel | RH | Both |

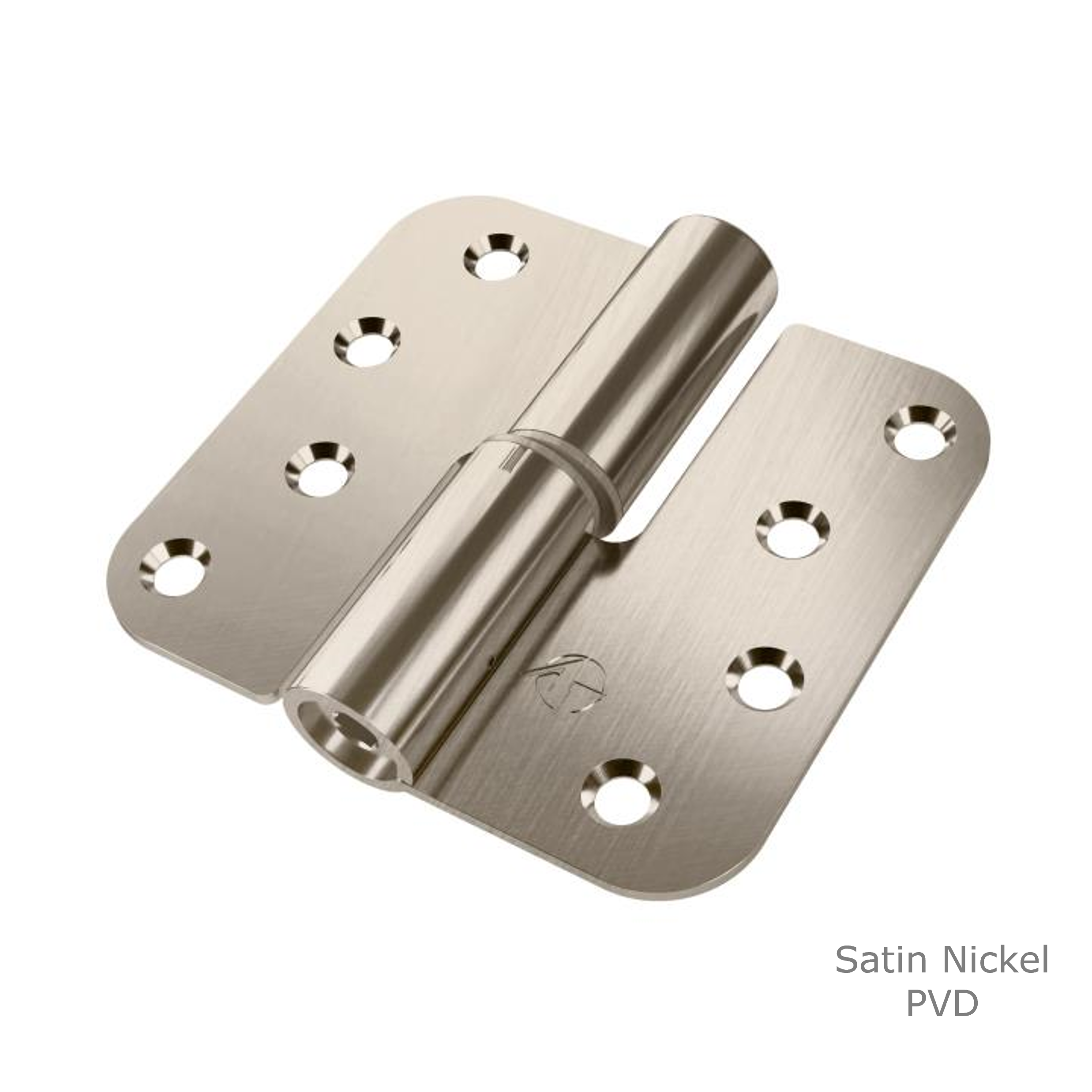

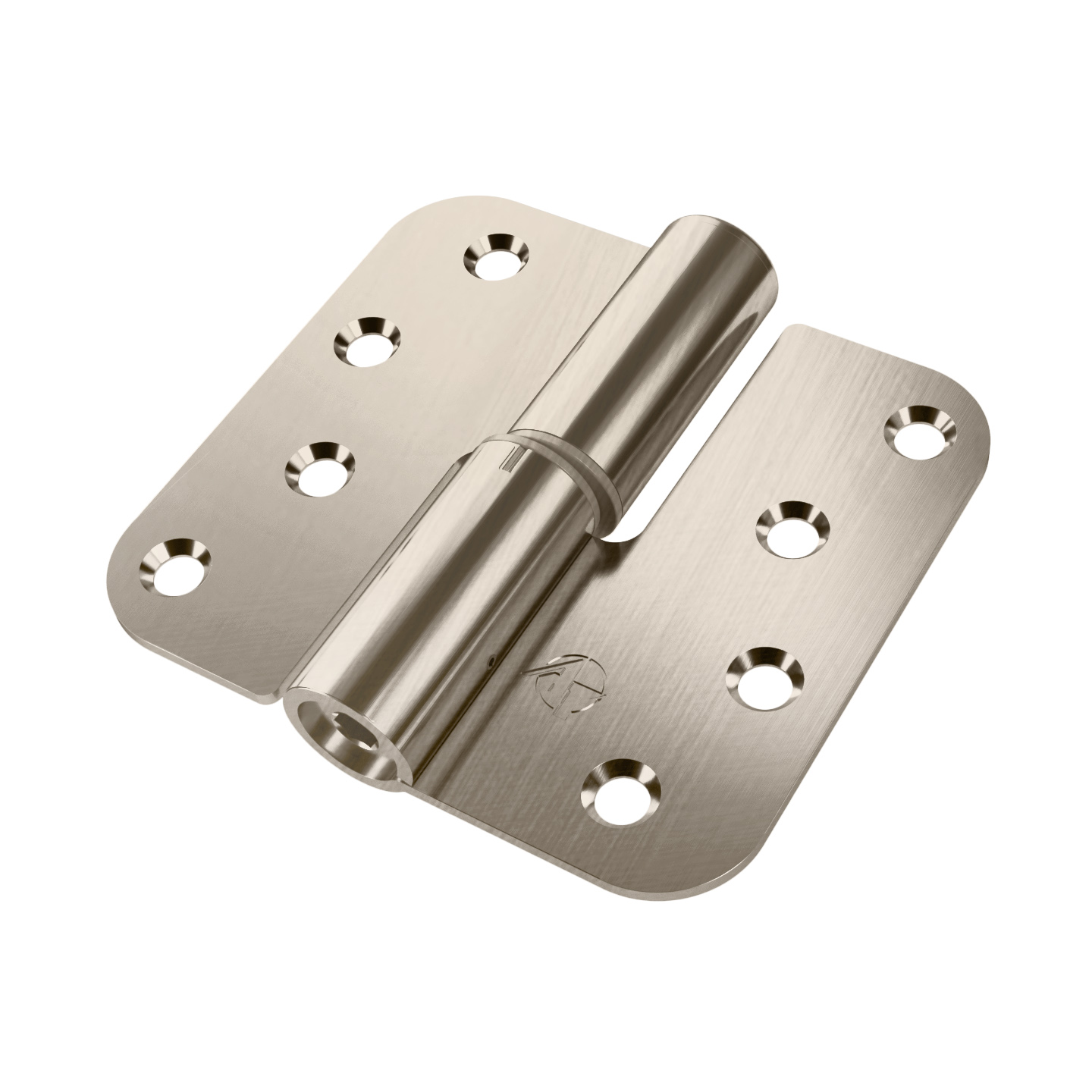

| 2031543 | V500 Adjustable Hinge LH - Satin Nickel PVD -90 | Stainless Steel | LH | Both |
| 2031544 | V500 Adjustable Hinge RH - Satin Nickel PVD -90 | Stainless Steel | RH | Both |
Click an image below to view a larger version
*Efforts have been made to accurately display colors but they may vary based on screen settings.
Blacks
Brasses
Browns
Nickels
Steels
Whites
