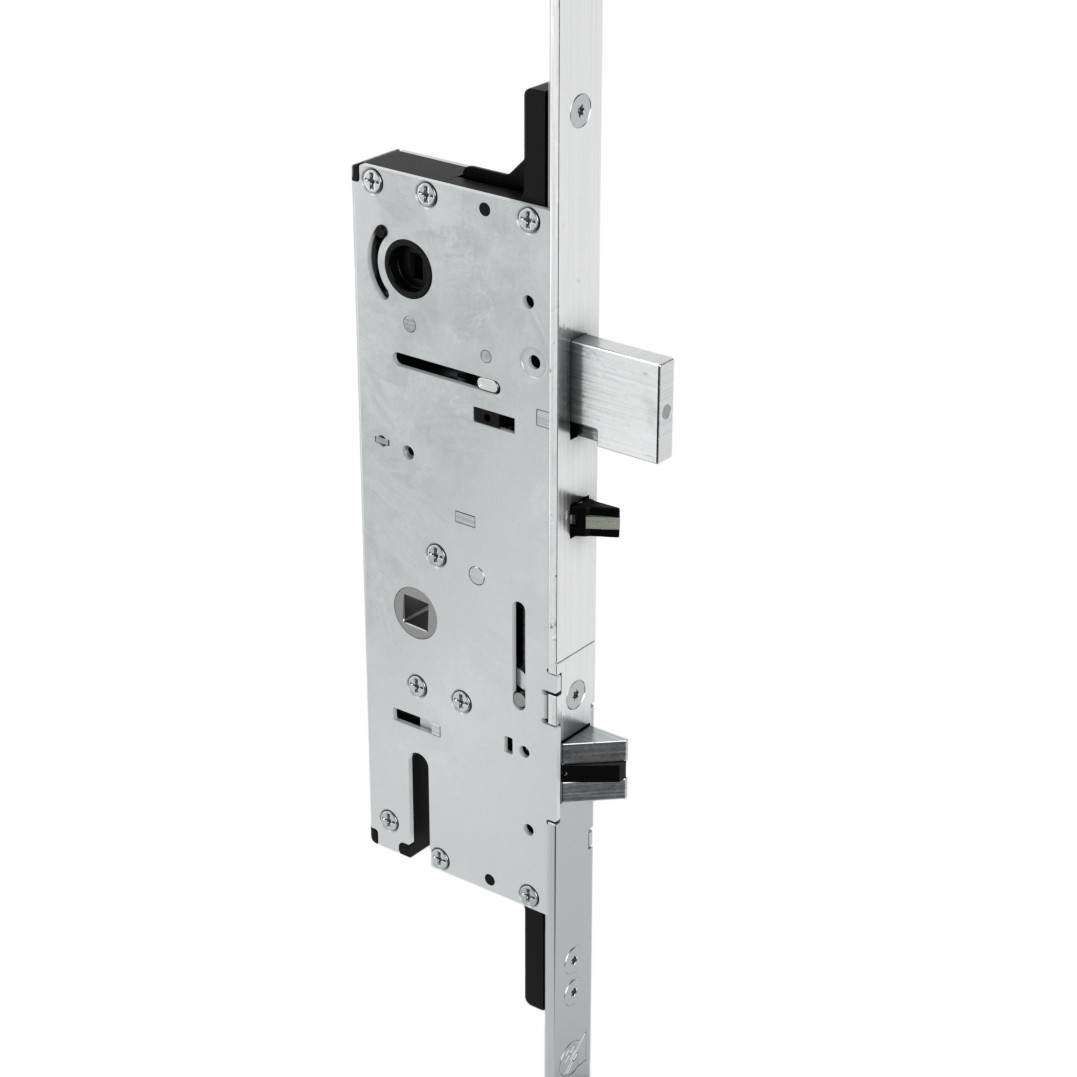

XCore Multi-Point Lock
A Feature-Rich Multi-Point Lock Platform with Intuitive Operation and Exceptional Performance.
The XCore™ Multi-Point Lock platform delivers exceptional performance, manufacturing efficiencies, and smooth, reliable operation for hinged patio doors. Auto-firing latches provide intuitive operation while helping reduce panel bowing and warping over time.
An industry-first optional 5-point locking system with an auto-firing configuration adds structural strength and security for larger door panels, giving manufacturers a versatile solution designed to meet the demands of today’s high-performance hinged doors.
Product Highlights
- Auto-Fire Latch – Secures the panel while improving air, water, and helps prevent bow/warp .
- 5-Point Lock with Auto-Fire Latch – Boosts security with head and sill bolts activated by handle lift.
- Active/Inactive Communication – Ensures secure double-door locking with clear visual and mechanical cues.
- Independent Deadbolt (“Babysitter” Feature) – Locks the deadbolt with a simple thumb turn.
- Easy Reversible Latches – Switch between left/right-handed use with a quick, tool-free adjustment.
- Wear-Resistant Strips – Protect decorative strikes from wear during door operation.
- Anti-Cut-Through Pin – Resists sawing for stronger protection against forced entry.
- Anti-Slam – Prevents damage to lock, door, frame, and floor.

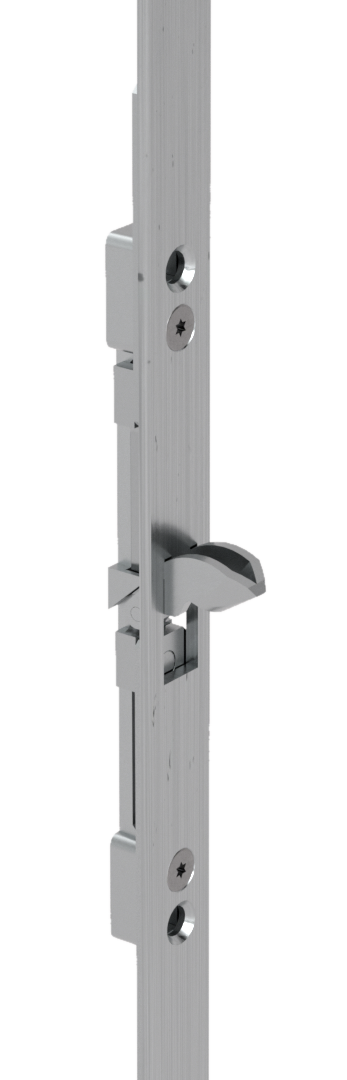

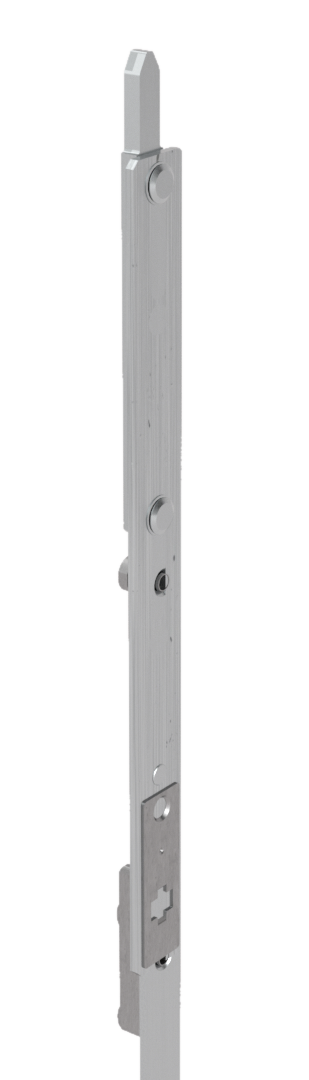

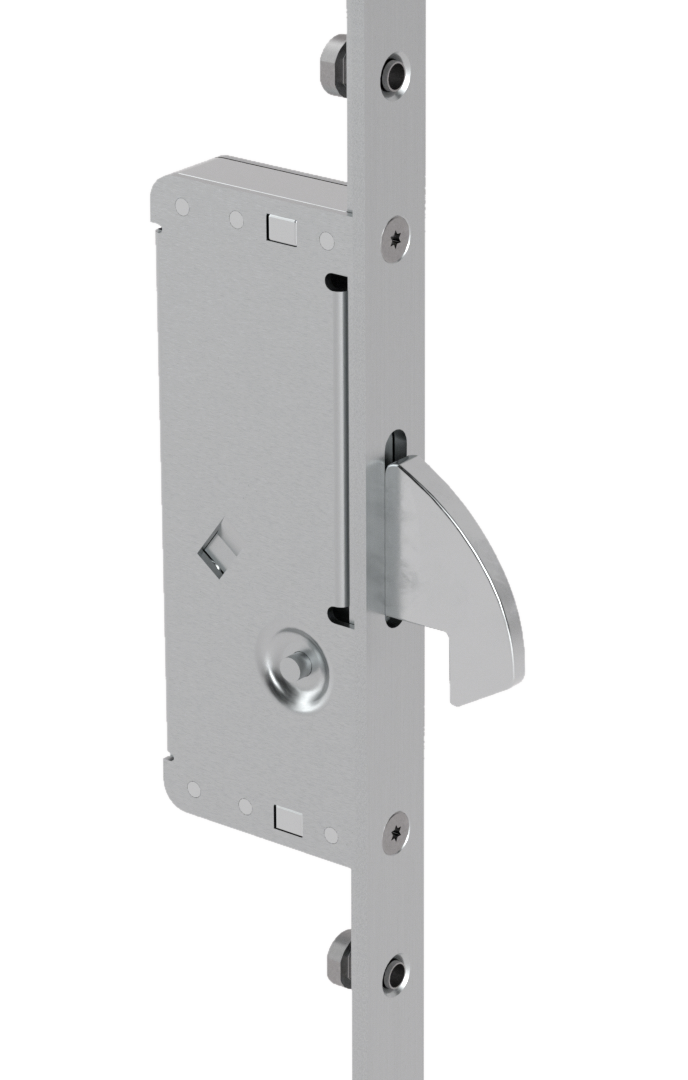

- Additional Locking Types – Multiple options (rhino, tongue, shoot) for varied performance and pricing.
- Coastal Protection – Provides corrosion resistance in harsh environments.
Product Specifications
- Backset options = 35mm, 45mm & 60mm
- Eurogroove = 16mm & 20mm
- Spindle = 8mm
- Uses standard 5-pin American style key cylinder
- Handle/thumb-turn spacing = 92mm
- Dead-bolt throw = 1"
- Shoot tip throw = 1"
Specifications (View full specifications in Excel or PDF )
| Part # | Description | Lock System Type | Back Set | Face Bar Width |
|---|---|---|---|---|
| 2031621 | XCore PASSIVE LOCK 80" | Passive | 45mm | 16mm |
| 2031622 | XCore PASSIVE LOCK 93" | Passive | 45mm | 16mm |
| 2031623 | XCore ACTIVE LOCK 80" | Active 3 Point Autofire | 45mm | 16mm |
| 2031624 | XCore ACTIVE LOCK 93" | Active 3 Point Autofire | 45mm | 16mm |
| 2031625 | XCore ACTIVE LOCK 117" | Active 3 Point Autofire | 45mm | 16mm |
| 2031626 | XCore 45MM PASSIVE 7' | Passive | 45mm | 16mm |
| 2031627 | XCore 45MM PASSIVE 8' | Passive | 45mm | 16mm |
| 2031628 | XCore 45MM PASSIVE 9' | Passive | 45mm | 16mm |
| 2031629 | XCore 45MM PASSIVE 10' | Passive | 45mm | 16mm |
| 2031638 | XCore ACTIVE CUTDOWN 7' | Active 3 Point Autofire | 45mm | 16mm |
| 2031639 | XCore ACTIVE CUTDOWN 8' | Active 3 Point Autofire | 45mm | 16mm |
| 2031640 | XCore ACTIVE CUTDOWN 9' | Active 3 Point Autofire | 45mm | 16mm |
| 2031641 | XCore ACTIVE CUTDOWN 10' | Active 3 Point Autofire | 45mm | 16mm |
| 2032641 | 6-10 ACT 3PT SHOOTS | Active 3pt 2 Shoots | 45mm | 16mm |
| 2032642 | 8-0 ACT 3PT SHOOTS | Active 3pt 2 Shoots | 45mm | 16mm |
| 2032643 | 6-10 ACT 3PT TONGUE | Active 3pt 2 Tongues | 45mm | 16mm |
| 2032644 | 8-0 ACT 3PT TONGUE | Active 3pt 2 Tongues | 45mm | 16mm |
| 2032645 | 6-10 ACT 4PT RHINO | Active 3pt 2 Rhinos | 45mm | 16mm |
| 2032647 | 8-0 ACT 4PT RHINO | Active 3pt 2 Rhinos | 45mm | 16mm |
| 2032648 | 6-10 ACT 36HH PASSIVE | Passive | 45mm | 16mm |
| 2032649 | 8-0 ACT 36HH PASSIVE | Passive | 45mm | 16mm |
| 2033142 | 5PT AUTOFIRE 93 IN INTEGRAL TIPS | Active 5pt 2 Autofire | 45mm | 16mm |
| 2033143 | 8-0 ACT 5PT AUTOFIRE CUTDOWN | Active 5pt 2 Autofire | 45mm | 16mm |
| 2033144 | 8-0 ACT 5PT TONGUE CUTDOWN | Active 5pt 2 Tongues | 45mm | 16mm |
| 2033145 | 8-0 ACT 5PT RHINO CUTDOWN | Active 5pt 2 Rhinos | 45mm | 16mm |
| 2033146 | 6-10 ACT 3PT RHINO CUTDOWN | Active 3pt 2 Rhinos | 45mm | 16mm |
| 2033147 | 8-0 ACT 3PT RHINO CUTDOWN | Active 3pt 2 Rhinos | 45mm | 16mm |
| 50457006481 | XCore 9-0 ACT 3PT SHOOTS | Active 3pt 2 Shoots | 45mm | 16mm |
| 50457006681 | XCore 10-0 ACT 3PT SHOOTS | Active 3pt 2 Shoots | 45mm | 16mm |
| 50457206081 | XCore 6-10 ACT 3PT SHOOTS (20mm) | Active 3pt 2 Shoots | 45mm | 20mm |
| 50457206281 | XCore 8-0 ACT 3PT SHOOTS (20mm) | Active 3pt 2 Shoots | 45mm | 20mm |
| 50457206481 | XCore 9-0 ACT 3PT SHOOTS (20mm) | Active 3pt 2 Shoots | 45mm | 20mm |
| 50457206681 | XCore 10-0 ACT 3PT SHOOTS (20mm) | Active 3pt 2 Shoots | 45mm | 20mm |
| 51457001681 | XCore 9-0 ACT 3PT TONGUES | Active 3pt 2 Tongues | 45mm | 16mm |
| 51457001881 | XCore 10-0 ACT 3PT TONGUES | Active 3pt 2 Tongues | 45mm | 16mm |
| 51457201281 | XCore 6-10 ACT 3PT TONGUES (20mm) | Active 3pt 2 Tongues | 45mm | 20mm |
| 51457201481 | XCore 8-0 ACT 3PT TONGUES (20mm) | Active 3pt 2 Tongues | 45mm | 20mm |
| 51457201681 | XCore 9-0 ACT 3PT TONGUES (20mm) | Active 3pt 2 Tongues | 45mm | 20mm |
| 51457201881 | XCore 10-0 ACT 3PT TONGUES (20mm) | Active 3pt 2 Tongues | 45mm | 20mm |
| 53457202881 | XCore 6-10 ACT 3PT AUTOFIRE (20mm) | Active 3 Point Autofire | 45mm | 20mm |
| 53457203081 | XCore 8-0 ACT 3PT AUTOFIRE (20mm) | Active 3 Point Autofire | 45mm | 20mm |
| 53457203281 | XCore 9-0 ACT 3PT AUTOFIRE (20mm) | Active 3 Point Autofire | 45mm | 20mm |
| 53457203481 | XCore 10-0 ACT 3PT AUTOFIRE (20mm) | Active 3 Point Autofire | 45mm | 20mm |
| 55457002181 | XCore 9-0 PASS CUTDOWN | Passive | 45mm | 16mm |
| 55457002381 | XCore 10-0 PASS CUTDOWN | Passive | 45mm | 16mm |
| 55457200581 | XCore 6-10 PASS CUTDOWN (20mm) | Passive | 45mm | 20mm |
| 55457200781 | XCore 8-0 PASS CUTDOWN (20mm) | Passive | 45mm | 20mm |
| 55457200981 | XCore 9-0 PASS CUTDOWN (20mm) | Passive | 45mm | 20mm |
| 55457201181 | XCore 10-0 PASS CUTDOWN (20mm) | Passive | 45mm | 20mm |
| 55457201781 | XCore 6-10 PASS CUTDOWN (20mm) | Passive | 45mm | 20mm |
| 55457201981 | XCore 8-0 PASS CUTDOWN (20mm) | Passive | 45mm | 20mm |
| 55457202181 | XCore 9-0 PASS CUTDOWN (20mm) | Passive | 45mm | 20mm |
| 55457202381 | XCore 10-0 PASS CUTDOWN (20mm) | Passive | 45mm | 20mm |
| 56457004881 | XCore 9-0 ACT 3PT RHINOS | Active 3pt 2 Rhinos | 45mm | 16mm |
| 56457005081 | XCore 10-0 ACT 3PT RHINOS | Active 3pt 2 Rhinos | 45mm | 16mm |
| 56457005681 | XCore 9-0 ACT 4PT RHINOS | Active 3pt 2 Rhinos | 45mm | 16mm |
| 56457005881 | XCore 10-0 ACT 4PT RHINOS | Active 3pt 2 Rhinos | 45mm | 16mm |
| 56457204481 | XCore 6-10 ACT 3PT RHINOS (20mm) | Active 3pt 2 Rhinos | 45mm | 20mm |
| 56457204681 | XCore 8-0 ACT 3PT RHINOS (20mm) | Active 3pt 2 Rhinos | 45mm | 20mm |
| 56457204881 | XCore 9-0 ACT 3PT RHINOS (20mm) | Active 3pt 2 Rhinos | 45mm | 20mm |
| 56457205081 | XCore 10-0 ACT 3PT RHINOS (20mm) | Active 3pt 2 Rhinos | 45mm | 20mm |
| 56457205281 | XCore 6-10 ACT 4PT RHINOS (20mm) | Active 3pt 2 Rhinos | 45mm | 20mm |
| 56457205481 | XCore 8-0 ACT 4PT RHINOS (20mm) | Active 3pt 2 Rhinos | 45mm | 20mm |
| 56457205681 | XCore 9-0 ACT 4PT RHINOS (20mm) | Active 3pt 2 Rhinos | 45mm | 20mm |
| 56457205881 | XCore 10-0 ACT 4PT RHINOS (20mm) | Active 3pt 2 Rhinos | 45mm | 20mm |
| 57457002081 | XCore 6-10 ACT 5PT TONGUES | Active 5pt 2 Tongues | 45mm | 16mm |
| 57457002481 | XCore 9-0 ACT 5PT TONGUES | Active 5pt 2 Tongues | 45mm | 16mm |
| 57457002681 | XCore 10-0 ACT 5PT TONGUES | Active 5pt 2 Tongues | 45mm | 16mm |
| 57457202081 | XCore 6-10 ACT 5PT TONGUES (20mm) | Active 5pt 2 Tongues | 45mm | 20mm |
| 57457202281 | XCore 8-0 ACT 5PT TONGUES (20mm) | Active 5pt 2 Tongues | 45mm | 20mm |
| 57457202481 | XCore 9-0 ACT 5PT TONGUES (20mm) | Active 5pt 2 Tongues | 45mm | 20mm |
| 57457202681 | XCore 10-0 ACT 5PT TONGUES (20mm) | Active 5pt 2 Tongues | 45mm | 20mm |
| 58457005281 | XCore 6-10 ACT 5PT RHINOS | Active 5pt 2 Rhinos | 45mm | 16mm |
| 58457005681 | XCore 9-0 ACT 5PT RHINOS | Active 5pt 2 Rhinos | 45mm | 16mm |
| 58457005881 | XCore 10-0 ACT 5PT RHINOS | Active 5pt 2 Rhinos | 45mm | 16mm |
| 58457205281 | XCore 6-10 ACT 5PT RHINOS (20mm) | Active 5pt 2 Rhinos | 45mm | 20mm |
| 58457205481 | XCore 8-0 ACT 5PT RHINOS (20mm) | Active 5pt 2 Rhinos | 45mm | 20mm |
| 58457205681 | XCore 9-0 ACT 5PT RHINOS (20mm) | Active 5pt 2 Rhinos | 45mm | 20mm |
| 58457205881 | XCore 10-0 ACT 5PT RHINOS (20mm) | Active 5pt 2 Rhinos | 45mm | 20mm |
| 59457003881 | XCore 9-0 ACT 5PT AUTOFIRE | Active 5pt 2 Autofire | 45mm | 16mm |
| 59457004081 | XCore 10-0 ACT 5PT AUTOFIRE | Active 5pt 2 Autofire | 45mm | 16mm |
| 59457006881 | XCore 6-10 ACT 5PT AUTOFIRE | Active 5pt 2 Autofire | 45mm | 16mm |
| 59457203681 | XCore 8-0 ACT 5PT AUTOFIRE (20mm) | Active 5pt 2 Autofire | 45mm | 20mm |
| 59457203881 | XCore 9-0 ACT 5PT AUTOFIRE (20mm) | Active 5pt 2 Autofire | 45mm | 20mm |
| 59457204081 | XCore 10-0 ACT 5PT AUTOFIRE (20mm) | Active 5pt 2 Autofire | 45mm | 20mm |
| 59457206881 | XCore 6-10 ACT 5PT AUTOFIRE (20mm) | Active 5pt 2 Autofire | 45mm | 20mm |
